Intelligent Commercial Industrial Energy Storage System Battlink 241kWh DOD 95% IP55 Enclosure Protection Rating

Ask Lasest Price
Brand Name :	Battlink
Model Number :	Battlink 241
Certification :	Battery Energy Storage System Certifications: UN38.3, MSDS, CB-IEC62619, CE-EMC, CE-LVD EN62477 Inverter-PCS Certifications: CE-EMC/LVC, European Directive Grid-Connected Certifications: EU Common (EN 50549-1, EN 50549-2), Germany (VDE-AR-N 4105:2018), Bel
Payment Terms :	T/T
Delivery Time :	25days

Add to Cart

Product Details
Company Profile

Intelligent Commercial Industrial Energy Storage System Battlink 241kWh DOD 95% IP55 Enclosure Protection Rating

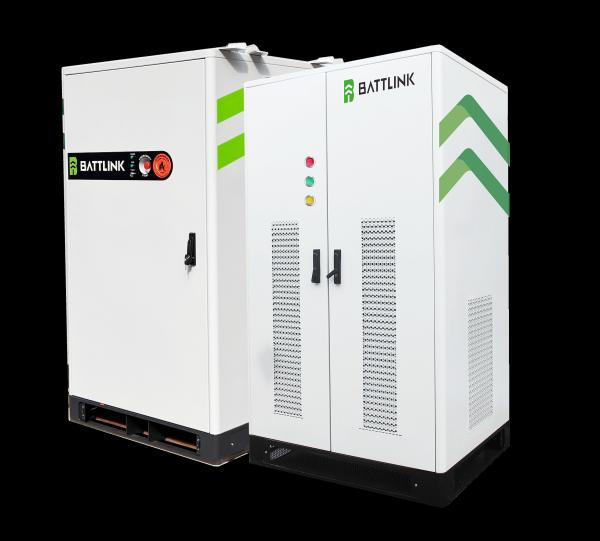

Battlink 241 kWh Intelligent Commercial & Industrial Energy Storage System

Battlink All-in-one C&I ESS series products integrated standard LiFePo4 battery module, Modular PCS,air conditioner,EMS,fire protection system into a single cabinet,It was widely used for farm,schools,supermarket,official building,mining,airport,hospitals and so on.It can be directly connected to the low-voltage side and realize multi-cabinet connection to flexible expansion, which can be applied to a variety of commercial and industrial application scenarios.

Features:

On&off grid switch time 0.02S,Critical load uninterrupted power supply；
5-in-1 fire decection,comprehensive monitoring；
Max.24x in parallel；
Max. round trip
efficiency 93%；
Max.continuous discharge current 160A.

Product parameters

Product Model	BATT-CI-100/241
Rated Energy(kwh)	241
Rated Voltage(V)	768
Voltage Range(Vdc)	648-864
Charge and Discharge Rate(P)	≤0.5
Max. Round Trip Efficiency	0.93
DOD	0.95
Cycle Lifetime at EOL 70%(time)	≥6000 cycles
Cooling Strategy	Air Cooling
Fire Fighting System	Perfluorohexanone/Aerosol
Rated Power(kW)	100
Rated AC Voltage (Vac)	380/400
AC Voltage Range	-15％~+10％
Rated Grid Frequency(Hz)	50/60
Dimension [Wx D x H,mm]	(152014802000mm)*1
Weight(T)	2.6
IP Grade	IP55
Operating Temperature Range(℃)	-20~+55(＞45 drop)
Operating Humidity Range	0~95％
Maximum Working Altitude(m)	≤4000(2000 drop)
Communication Interface	RS485,Ethemet
Communication Protocol	Modbus RTU, Modbus TCP, IEC104

Battery parameters

Battery Mudule	BATT-CI-100/241
Battery Type	LFP,3.2V314Ah
Battery Module	64V314Ah,20.09kWh, 134kg
Battery String Configuration	240S1P
Battery String Energy(kWh)	241.15
Standards Compliant	IEC62619 IEC61000 IEC62477 VDE4105 G98 G99EN50549-1 BOS-P-01 C10/11 UN38.3

Note: Products are constantly iterating and performance is continuously improving.

These technical parameters are for reference only.
