    One-stop Battery Energy Storage System 430kWh Battery Backup Self-Consumption Peak Shaving Frequency Regulation BESS

    Ask Lasest Price
    Brand Name : Battlink
    Model Number : XX
    Certification : CE
    Price : TBD
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 100pcs per month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    One-stop Battery Energy Storage System 430kWh Battery Backup Self-Consumption Peak Shaving Frequency Regulation BESS

    One-stop Battery Energy Storage System 430kWh Battery Backup Self-Consumption Peak shaving frequency regulation BESS

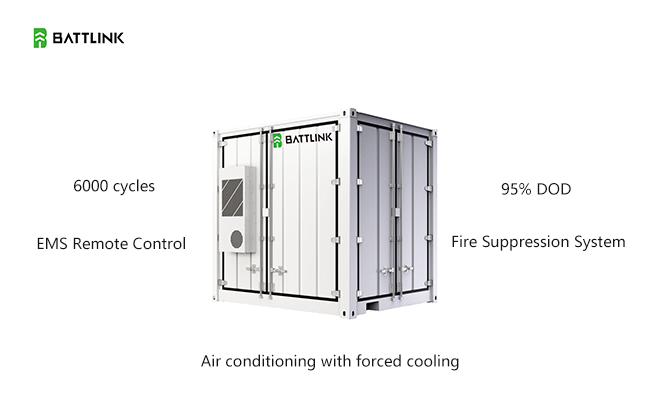

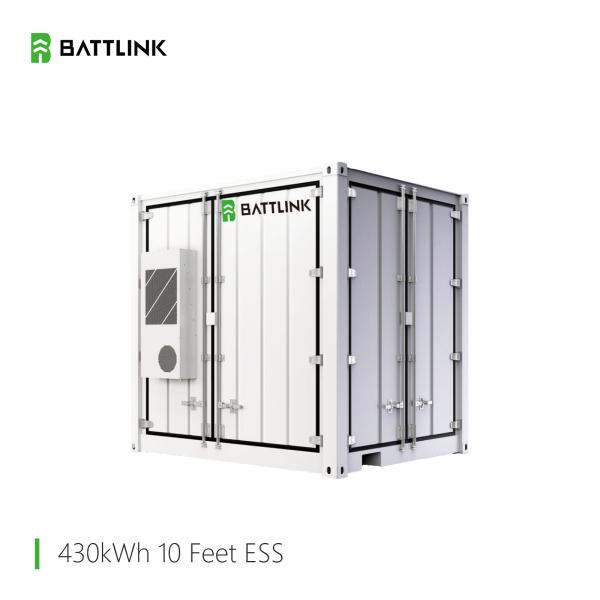

    The outdoor cabinet energy storage system is a versatile ESS tailored for small C&I loads, offering compactness and flexibility. This seamlessly integrated system includes crucial components such as battery units, PCS, fire extinguishing system, temperature control systems, and EMS systems. Boasting a capacity of 430kWh, it caters to various needs like self-consumption, backup power, net metering, peak shaving, and frequency regulation, among others.


    System Parameters

    Product Model360kWp-250kW-430kWh100kWp-100kW-430kWh
    BatterySystem Parameters
    Cell TypeLFP, 3.2V280Ah
    Battery Module64V280Ah, 17.92kWh, 140.5kg
    Number of Battery Modules24PCS
    Rated Enengy430.08kWh
    Rated Valtage768V
    Voltage Range696.0-852.0V(Cell:2.9-3.55Vdc)
    Charge and Discharge Rate0.5C0.25C
    DOD95%
    Lifetime6000 cycle
    Coding MethodAir conditioning with forced air cooling
    Fire protection systemAerosols/perfluorohexanone
    AC Output Parameters
    Rated Power250kVA100kVA
    Rated Voltage400Vac400Vac
    Rated Current361A145A
    Frequency50/60Hz
    THD<3%
    THDu<1% linear;<5% non-linear
    Overload Capacity110% Long term
    Isolation MethodTransfommer isolation
    System Parameters
    Communication Interface (EMS)R5485/Ethernet
    Installation LocationOutdoor
    IP GradeIP55
    Anti-corrosion GradeC5
    Operating Humidity Range0~95% (non condensing)
    Operating Temperature Range-30~+55
    Maximum Working Altitude4000m(>3000m)derating
    Dimensions(L*W*H)2991*2438*2591mm
    WeightAbout 8.5TAbout 8T

    Product Features

    • Experience seamless integration, compact design, and effortless setup, operation, and maintenance.
    • Benefit from enhanced environmental resilience with IP55 protection rating. E
    • nable efficient energy management with peak shaving, valley filling, and transformer dynamic expansion.
    • Enjoy comprehensive security with integrated fire suppression, temperature control, and early warning systems.
    • Safety and Reliability: Our patented LFP lithium-ion technology ensures exceptional safety and reliability, featuring pressure relief and fire protection.
    • Battery Management System (BMS): Our standard 3-level BMS ensures optimal performance and long-lasting durability.
    • Smart Design for Easy Installation: The all-in-one AC/DC design simplifies installation and transportation, with turnkey products delivered for your convenience.
    • Enhanced Functionality Optional: Additional features like optical storage integration and micromesh provide customizable solutions to meet your specific needs.
