Name: 15T 25T 408Ah 48V LiFePO4 Battery For Electric Forklift
Brand: Huaxing
Price: 1 USD

Add to Cart

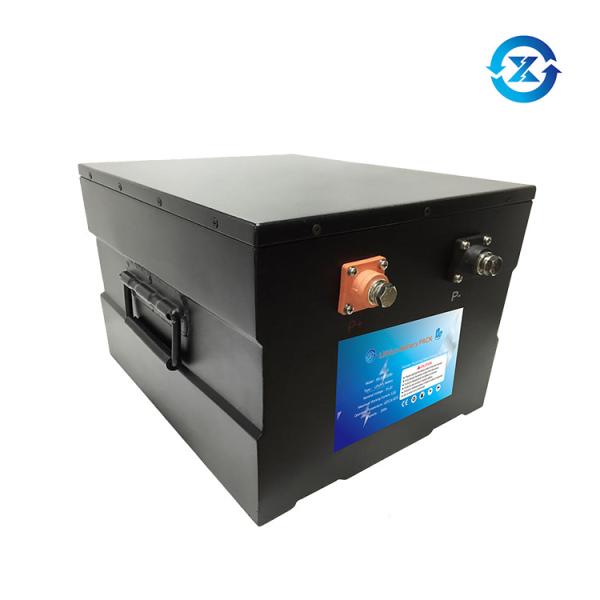

Customized 1.5T-2.5T Electric Forklift Battery 48V 400Ah LiFePo4 With Metal Casing

48V 408AH Forklift LiFePo4 battery pack features

1.Long life cycles:Over 2000 cycles

2.High safety:No fire and explosion in overcharging and overdischarge test

3.Fast charging

4.Environmental friendly

5.Light weight

6.Wide working temperature -20~60℃

7.Wide applications

48V400AH Deep cycle Lithium ion battery specification

No.	Item	General Parameter
1	Model	HX48408
2	Standard Capacity	408AH
3	Rated Voltage	51.2V
4	Max Charge Voltage	58.4V
5	Discharge Cut Off Voltage	40V
6	Standard Charge Current	50A
7	Max Continuous Discharge Current	100A
8	Peak Instant Discharge Current	200Ah with 5S
9	Dimension(Steel Case)	1030780495mm
10	Total weight(Approx.)	200kg
11	Operate Temperature	-20°C~60°C
12	Built-in BMS	YES
13	Cycle Times	2000 cycles

48V 400AH deep cycle Lithium ion battery BMS specification

Item	Content	Criterion
Charge and Discharge Port		Shared
Communication		None
Parallel Connection		None
Serial Connection		None
Normal Current	Charge Current	≤100A
Normal Current	Discharge Current	≤100A
Over charge Protection	Over charge detection voltage	3.75±0.05V
	Over charge detection delay time	~1000mS
	Over charge release voltage	3.55±0.05V
	Over charge release condition	Cut off charger
	Maximum charge voltage	3.65±0.05V
Over discharge protection	Over discharge detection voltage	2.20V±0.10V
	Over discharge detection delay time	200ms
	Over discharge release voltage	2.4V±0.10V
Discharge over current protection	Discharge over current detection current	330±30A
	Discharge over current detection delay time	~100±50ms
	Discharge over current release condition	Cut load
Short circuit protection	YES

Main Applications:

RV ,Motorhome,Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, scooter, golf cart, forklift and so on.
Telecommunication, back-up power supply, UPS
Storage energy for solar system, solar street, home energy storage and so on

Company Profile

Hunan Huaxing New Energy Technology Co.,Ltd is R&D production and sales of 32700 LiFePo4 cells and battery pack.

Our company passed ISO9001:2015 and iSO14001:2015 and ISO45001:2018

Our 32700 LFP cell passed UL1642/IEC62619/IEC61960/IEC62133/CE/PSE/BIS/Rohs/UN38.8 and MSDS.

1.5T 2.5T 408Ah 48V LiFePO4 Battery For Electric Forklift

Certificate

Shipment

1.5T 2.5T 408Ah 48V LiFePO4 Battery For Electric Forklift

The comparison between LFP and NCM

Items	LiFePO4 Battery	LiNiCoMnO2 Battery(NCM)
Nominal Voltage	3.2V	3.7V
Discharging Rate	≤10C	≤5C
Safety	Much more safe at high temperature, or in an accident, no explosion, no fire, successfully pass the safety test	Less safety performance at high temperature, or in an accident. difficult to pass the safety test, such as nail penetration test
Working Temperature	-20-70℃.	-20-55℃.
Cycle Performance	More than 4000 cycles at 1C, 80%DOD. The EOL is still 100% after 500 cycles	About 1500 cycles at 1C, 80%DOD. The EOL is below 98% after 500 cycles
Stability	The Olivine type crystal structure is the most stable one, and not decompose in high temperature	The Layer type crystal structure is less stable, easy to decompose and collapse
Material	Does not contain any heavy metals and rare metals, raw material can be easily obtained	Co is rare metal, and very limit resource on the globe
