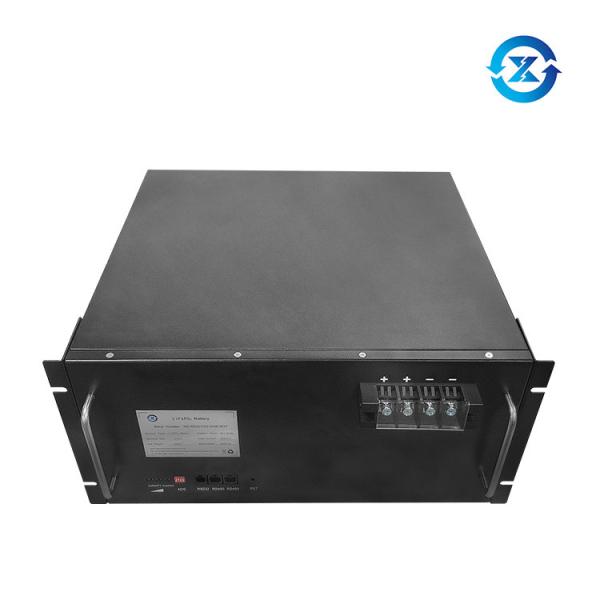

Name: Parallels Connection 100Ah 5KWh 48 Volt Lithium Battery Pack
Brand: HUAXING
Price: 1 USD

Add to Cart

Supporting Parallels Connection 48V 100Ah 5KWh LiFePo4 Battery With Communication BMS RS232/RS485

Description and Model
Battery Classification: LiFePO4
Battery Type: 51.2V100AH

48V 100Ah 5KWh LiFePo4 Battery Specification

No.	Item	General Parameter
1	Model	HX48200
2	Standard Capacity	100AH
3	Rated Voltage	51.2V
4	Max Charge Voltage	58.4V
5	Discharge Cut Off Voltage	40V
6	Standard Charge Current	50A
7	Max Continuous Discharge Current	100A
8	Peak Instant Discharge Current	110A
9	Dimension(ABS)	482.6455221.5mm
10	Total weight(Approx.)	57kg
11	Operate Temperature	-20°C~60°C
12	Built-in BMS	YES
13	Cycle Times	2000 cycles

BMS Basic specification:

Item	Content	Criterion
Charge and Discharge Port		Shared
Communication		RS232/RS485
Parallel Connection		15PCS
Serial Connection		Not allowed
Normal Current	Charge Current	≤50A
Normal Current	Discharge Current	≤50A
Over charge Protection	Over charge detection voltage	3.75±0.05V
	Over charge detection delay time	~1000mS
	Over charge release voltage	3.55±0.05V
	Over charge release condition	Cut off charger
	Maximum charge voltage	3.65±0.05V
Over discharge protection	Over discharge detection voltage	2.20V±0.10V
	Over discharge detection delay time	200ms
	Over discharge release voltage	2.4V±0.10V
Discharge over current protection	Discharge over current detection current	100A
	Discharge over current detection delay time	~100±50ms
	Discharge over current release condition	Cut load
Short circuit protection	YES

Inner Cell performances:

Our factory passes ISO9001:2015 and ISO14001:2015

Our 32700 lifepo4 cells pass UL1642/BIS/PSE/Rohs/IEC62619/IEC61960/

IEC62133/ and CB/UN38.3/MSDS.

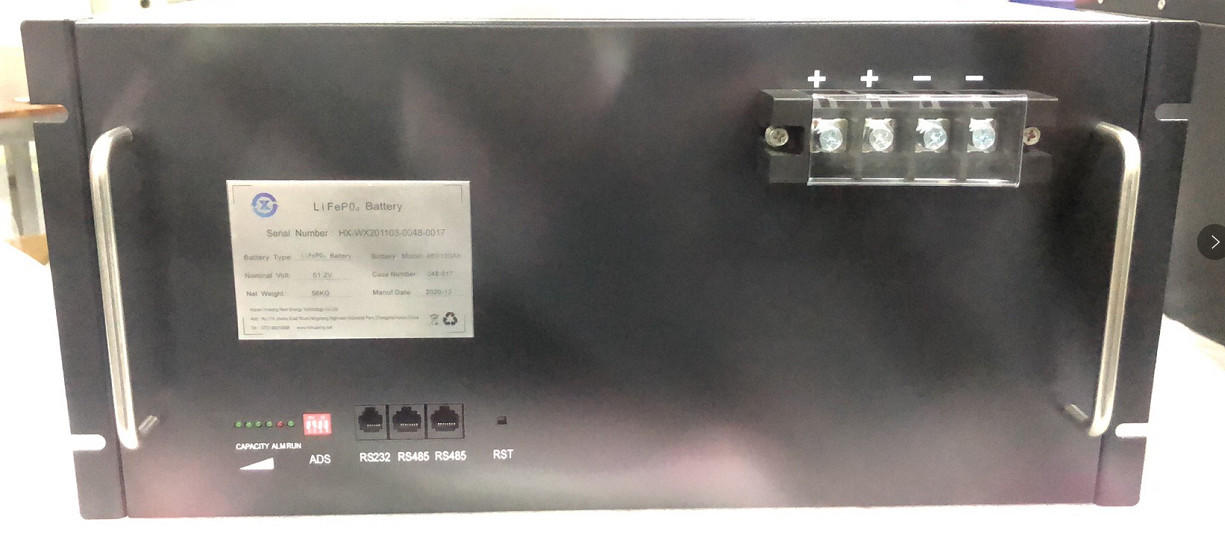

Communication BMS Panel:

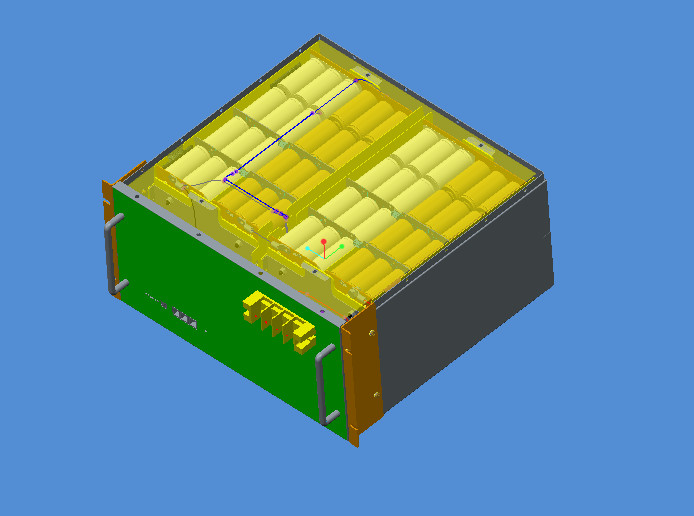

Battery Module:

Cylindrical cell more safety,more cooling

Parallels Connection 100Ah 5KWh 48 Volt Lithium Battery Pack

Production line:

3GWH production line Mass production

Battery packaging:

Parallels Connection 100Ah 5KWh 48 Volt Lithium Battery Pack
