Name: AC Switch QC 30 500W Outdoor Portable Power Bank
Brand: Huaxing
Price: 1 USD

Add to Cart

Product description

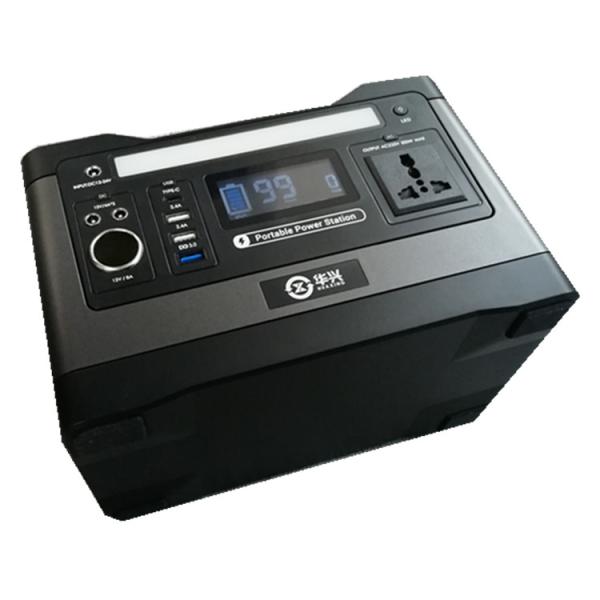

HX-500w portable energy storage power supply, with lithium battery as the core,

adopts high frequency inverter technology, integrates the battery and inverter part into

portable metal cabinet, and creates a common energy storage product for outdoor home.

It outputs ac220v/50hz and outputs usb+dc12v power supply.

Product performance parameters:

Inverter output part

Input undervoltage protection	9V±0.5V
No load consumes electrical current	≤0.6A
The output voltage	220V/±10%
The output frequency	50HZ/60HZ±2HZ
Output rating	500W
Full load efficiency	≥89%
Output overload protection	500W±50W

DC1 output part

Battery undervoltage protection	9V±0.5V
No load consumes electrical current	≤0.09A
output voltage	12V(9V-12.6V)
Output rated current	8A±5%
Output overcurrent protection	8.2A±0.5A
Full load efficiency	≥95%
Output short circuit protection	There are
Output voltage	12V±5%
Output rated current	3.2A±0.5A
Full load efficiency	≥85%
Output short circuit protection	There are

DC2 output part

Battery undervoltage protection	9V±0.5V
No load consumes electrical current	≤0.05A
The output voltage	12V*3(9V-12.6V)
Output rated current	4A+4A+4A±5%
Output overcurrent protection	3*4.2A±0.5A
Full load efficiency	≥95%
Output short circuit protection	There are

USB output part

Battery undervoltage protection	9V±0.5V
No load consumes electrical current	≤0.05A
The output voltage	5V±5%
Output rated current	1A/2.1A
Output overcurrent protection	3.5-4.5A
Full load efficiency	≥88%
Output short circuit protection	There are

USB fast charging output part

Battery undervoltage protection	8.8±0.5V
No load consumes electrical current	≤0.09mA
The output voltage	5V/9V±5%
Output rated current	2.4A/1.5A
Output overcurrent protection	3A-4A
Full load efficiency	≥88%
Output short circuit protection	There are

DC charging part

Input rated voltage	12V~24V
Input current range	5.5A±5%
Battery charge current	5A±5%
Battery pack charging cut-off voltage	12.6V±5%

Solar charging part

Input rated voltage	20V
Input current range	4A±5%
Battery charge current	5A±5%
Battery pack charging cut-off voltage	12.6V±5%

AC charging part

Input rated voltage	AC100V-240V 50HZ/60HZ
Battery charge current	6A±5%
Battery pack charging cut-off voltage	12.6V±5%

Package Information:

DESCRIPTION	QUANTITY/CTN	product size	NET WEIGHT
DESCRIPTION	(PCS)	(MM)	(KG)
500W portable energy storage power supply	1	303194214.5mm	10KG

Product Tags:

500W Outdoor Portable Power Bank
