12V 100AH RV Lithium Ion Battery With Bluetooth BMS

Ask Lasest Price
Brand Name :	Huaxing
Model Number :	HX12100B
Certification :	CE
Price :	250-350$ per pcs
Delivery Time :	20-30 days

Add to Cart

Product Details
Company Profile

12V 100AH RV Lithium Ion Battery With Bluetooth BMS

High power 12V 100AH RV lithium ion battery with bluetooth BMS

12V 100AH RV lithium ion battery features

1.Long life cycles:Over 2000 cycles

2.High safety:No fire and explosion in overcharging and overdischarge test

3.Fast charging

4.Environmental friendly

5.Light weight

6.Wide working temperature -20~60℃

12V100AH RV Lithium ion battery specification

No.	Item	General Parameter
1	Model	HX12100B
2	Standard Capacity	100AH
3	Rated Voltage	12.8V
4	Max Charge Voltage	14.6V
5	Discharge Cut Off Voltage	10V
6	Standard Charge Current	50A
7	Max Continuous Discharge Current	100A
8	Peak Instant Discharge Current	200Ah with 5S
9	Dimension(ABS)	330171215mm
10	Total weight(Approx.)	14kg
11	Operate Temperature	-20°C~60°C
12	Built-in BMS	YES
13	Cycle Times	2000 cycles

12V100AH Lithium ion battery BMS specification

Item	Content	Criterion
Charge and Discharge Port		Shared
Communication		Bluetooth
Parallel Connection		Not allowed
Serial Connection		Max. 4pcs
Normal Current	Charge Current	≤100A
Normal Current	Discharge Current	≤100A
Over charge Protection	Charge Voltage	14.6V
	Over charge detection voltage	3.80±0.05V
	Over charge detection delay time	1S
	Over charge release voltage	3.60±0.05V
Over discharge protection	Over discharge detection voltage	2.00V±0.10V
	Over discharge detection delay time	1S
	Over discharge release voltage	2.30V±0.10V
Discharge over current protection	Discharge over current detection current 1 level	250±50A
	Discharge over current detection delay time	12S
	Discharge over current detection current 2 level	300±50A
	Discharge over current detection delay time	1S
	Discharge over current release condition	Cut off loading
Charge over current protection	Charge over current detection current	180±30A
	Charge over current detection delay time	1S
	Charge over current release condition	Cuf off charger
Short circuit protection	YES
Temperature protection	YES

Main Applications:

RV ,Motorhome,Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, scooter, golf cart, forklift and so on.
Telecommunication, back-up power supply, UPS
Storage energy for solar system, solar street, home energy storage and so on

Product Picture

12V 100AH RV Lithium Ion Battery With Bluetooth BMS

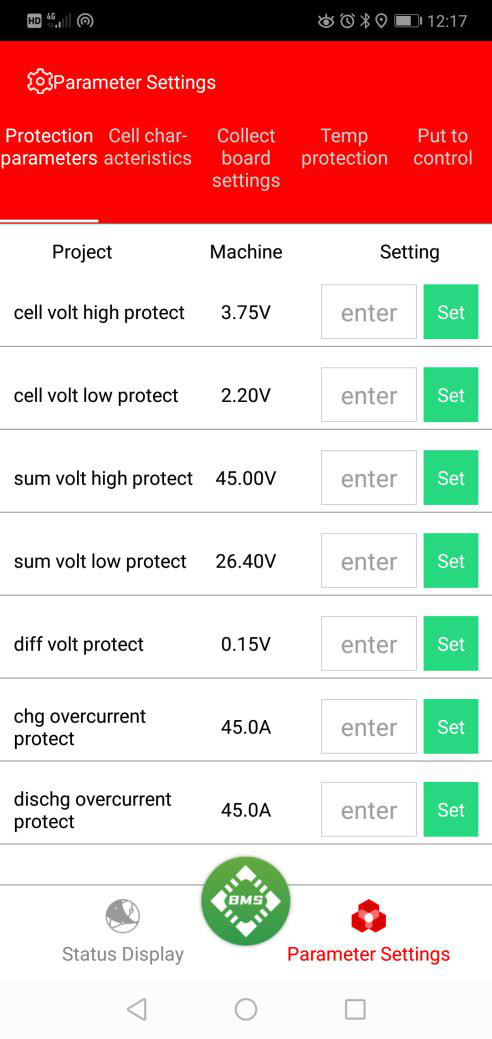

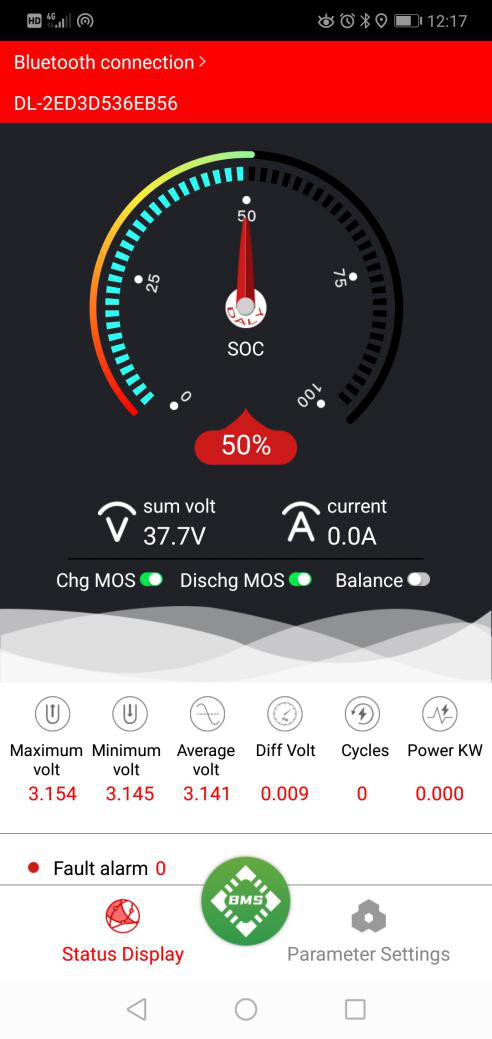

Bluettooth interface

12V 100AH RV Lithium Ion Battery With Bluetooth BMS

Package Information:

DESCRIPTION	QUANTITY/CTN	PACKAGE	GROSS WEIGHT	NET WEIGHT	DIMS(m³)
DESCRIPTION	(PCS)	CARTONS SIZE(MM)	(KG)	(KG)	DIMS(m³)
12V100AH LiFePo4 Battery	1	460250220	14	13	0.03

Company Profile

12V 100AH RV Lithium Ion Battery With Bluetooth BMS

Our company passed ISO9001:2015 and iSO14001:2015 and ISO45001:2018

Our 32700 LFP cell passed UL1642/IEC62619/IEC61960/IEC62133/CE/PSE/BIS/Rohs/UN38.8 and MSDS.

Hunan Huaxing New Energy Technology Co.,Ltd is R&D production and sales of 32700 LiFePo4 cells and battery pack.

We have over 50,000㎡ cell and pack workshop.With an annual production of 3GWh cell equipment and at technical R&D team.
