Containerized Energy Storage System Power Station 250KW PCS 500Kwh
Solar Energy Storage System
250KW/500K WH Containerized ESS specification

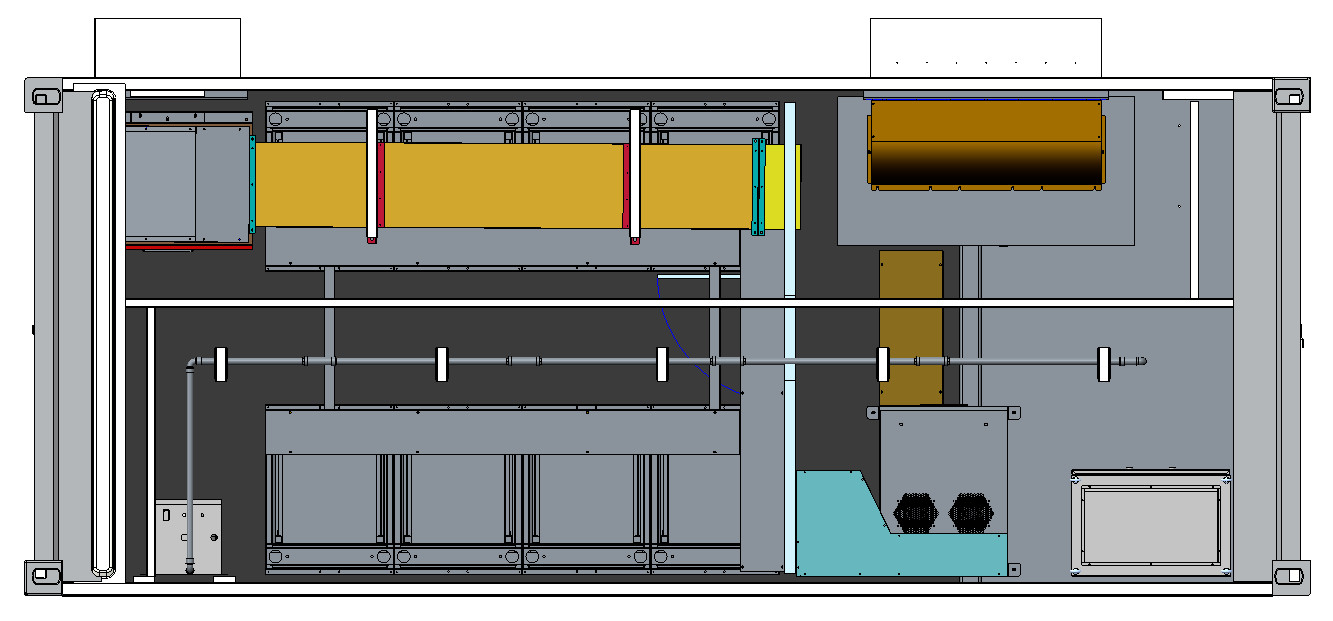

The whole energy storage system is 250KW/500KWh,the actual battery
energy of a single container energy storage system is
250KW/619.31KWh. The system have 8 battery strings(including BMS),1
set combiner box,1 set 250KW PCS, 1 set EMS ,air conditioner , fire
extinguisher system and other accessory equipments.The container
size is 6058*2438*2896 (mm).
| Item | Battery box | Battery string | Battery system |
| Rated voltage/capacity | 76.8V126Ah | 614.4V126Ah | 614.4V2016Ah |
| Energy/kWh | 9.67 | 77.41 | 1238.63 |
| Depth of discharge(DOD) | 95% | Over 90% | Over 85% |
| Cycle life(0.25C,room temp) | 85%DOD,over 6000 cycles | 85%DOD,over 6000 cycles | 85%DOD,over 6000 cycles |
| Storage temp | 25-45℃ is best | 25-45°C is best | 25-45°C is best |
| Self discharge | 25℃,month/≤5% | 25℃,month/≤5% | 25℃,month/≤5% |
| size(L*W*H)/mm | 628*482.6*250 | 800*603**2201 | 6058x2438x2591 |
| Remarks: The above parameters may change due to version upgrade.
Please refer to the technical agreement for physical parameters. |
Battery string 614.4V 126AH
Battery Cabinet 614.4V 1008AH
Longer Cycle Life : Offers up to 20 times longer cycle life and
five times longer float/calendar life than lead acid battery ,
helping to minimize replacement cost and reduce total cost of
ownership
Lighter Weight : About 40% of the weight of a comparable lead acid
battery . A " drop in" replacement for lead acid batteries
Higher Power : Delivers twice power of lead acid battery ,even high
discharge rate, while maintaining high energy capacity
Wider Temperature Range : -20℃~60℃
Superior Safety: Lithium Iron Phosphate chemistry eleminates the
risk of explosion or combustion due to high impact overcharging or
short circuit situation
Our safety tests for our lifepo4 battery:
Related Products
250KW PCS specification
| DC parameter |
| Working voltage range | 500V~850V |
| Max DC power | 250kW |
| Max DC current | 550A |
| AC parameter |
| Rated power | 250kW | Max AC power | 300kVA |
| Rated frequency | 50Hz | Allowable frequency range | 45-55Hz |
| Rated AC voltage | 315V | Allowable voltage range | 280-350V |
| Max output current | 550A | | |
| THD | <3% |
| Rated power factor | >0.99 |
| Power factor adjustable range | 0.9(lagging)~0.9(leading) |
| System parameter |
| Max efficiency | 98.7 % |
| IP grade | IP20 |
| Working temp | -25~50°C |
| Relative Humidity | 0~95% |
| Cooling | air cooling |
| Dimension | 1400*2100*700mm |
| Weight | 1400kg |
| Communication |
| Communication way | RS485/Ethernet/CAN/ optical fiber |
| Communication Protocol | IEC61850/Modbus/IEC60870-103 |
