Package&Delivery
| DESCRIPTION | QUANTITY/CTN | PACKAGE | GROSS WEIGHT | NET WEIGHT | DIMS(m3) |
| (PCS) | CARTONS SIZE(MM) | (KG) | (KG) |
| 32700 6AH | 80 | 312*207*168 | 12.5 | 12 | 0.01 |
1.1*1.1*1m pallet can load 6000 pcs 32700 LFP cell(75 cartons).1
set 20ft container can load 10 pallets.So 1 set 20ft container can
load 60,000-72,000 pcs.
To better ensure the safety of your goods, professional,
environmentally friendly, convenient and efficient packaging
services will be provided.
During transportation, 50% SOC must be kept to ensure that short
circuit, appearance of liquid in the battery or immersion of
battery in liquid never occur.
Cell should be kept at -20°C-45°C in warehouse where it’s dry,
clean and well-ventilated.
During loading of battery, attention must be paid against dropping,
turning over and serious stacking.
Application
Why Choose LiFePo4 Batteries Rather Than Lead Acid Batteries ?
1.Longer battery life – 5000times life cycle @60%DOD, 5 times more
than lead acid batteries
2.Low self-discharge <3.5% per months
3.Free of charge memory
4.Steady discharge and charge performance.
5.Outstanding thermal stability
6.Wide temperature performance
7.Short circuit protection
8.Over charge and over discharge protection
9.Over current protection
10.Easy carrying and installation - can be carried and installed in
any direction
11.Fast charging - about 4~6 hours to be fully charged
12.Lighter weight - 1/2~1/4 in weight compared to LA batteries
13.Require no change to a lead acid battery charging system
14.Better safety - mild warm, no explosion and firing, free of
leakage
15.Environmentally friendly - no poisonous lead, no acid, no
heavy/rare metals
16.No gasses during charge, free of leakage and pollution

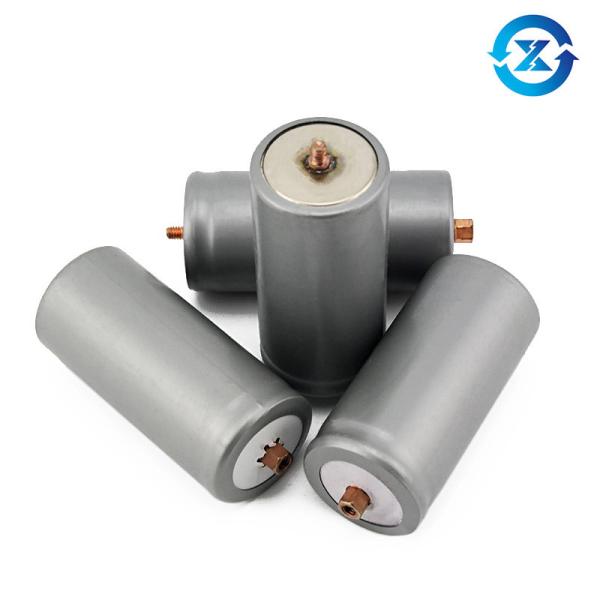

32700 6AH LFP cell certificate
Huaxing New EnergyAbout us:
HUAXING NEW ENERGY is a group company.
The Headquarter is Shenzhen Huaxing New Energy Co., Ltd, its
subsidiary companies
including Hunan Huaxing New Energy Technology Co., Ltd which
produces 32700 lifepo4
cells and JuXing New Energy Co., Ltd which produces 32700 lifepo4
battery pack.
We has over 50,000 m2 CELL and PACK workshop. With an annual
productivity of 3GWh
cell equipment and a technical R&D team, its annual sales
volume can reach RMB two billion,
paying annual tax of RMB 100 million for the local area.
We are manufacturer with ISO9001:2015 and ISO14001:2015 and
ISO45001:2018.
Our 32700 lifepo4 cell passes:
UL1642/BIS/PSE/CE/Rohs/IEC62619/IEC61960/IEC62133/
and CB/UN38.3 and MSDS.
Strong R&D team, Strict Quality Control, Professional
customized serive, Competitive
price, and Great sales team.
ONLY IN 32700 LIFEPO4 BATTERY
FUCOUS MAKES US PROFESSIONAL!!!
The comparison between LFP and SLA
| LFP battery | SLA battery | Remarks |
| Weight | high energy density: 110-120Wh/kg, leads to a smaller size and
lighter weight | low energy density: 32-37Wh/kg | LFP battery is about 70% size and weight of SLA battery, lower the
total weight of application |
| Cycle life | 4000 cycles and more | 400-500 cycles | LFP can be used for almost 10 years; SLA can only last for max. 2
years |
| Capacity Utilisation | 80 to 100% | 50 to 60% | Most lead acid batteries do not recommend more than 50% depth of
discharge |
| Efficiency | allows for the same amp hours both in and out | voltage drops quickly and reduces the batteries' capacity while
charging and rapid discharging | LFP battery has almost 100% efficiency while SLA battery has only
maximum 75% efficiency |
| Voltage | maintain voltage throughout the entire discharge cycle | drops consistently throughout the discharge cycle. | A stable droping voltage allows for greater and longer-lasting
efficiency of electrical components |
| Cost | Up to 8 times the cycle life compared to equivalent SLA | A low upfront cost, but a high cost of ownership in long run | Lower total cost of ownership |
| Environmental effect | clean technology, safer and more environment friendly | contains the heavy metal - lead | |
