Standard 12V40AH Lithium Battery Pack For Camping/Touring Car/Lamp
Replace SLA Battery Directly
12V 40AH Lithium battteries features
1.Best solution to replacement of lead acid battery 12V/48V
2.Marine power energy storage, boat, yachts, sailing back-up power
supply
3.RV/camping energy storage for appliances, such lights,
refrigerator, heating and so on.
4.Light electric vehicle, like golf cart, scooter, E-rickshaw,
two/three wheelers
12V 40AH LiFePo4 battteries specification
| No. | Item | General Parameter |
| 1 | Model | HX1240 |
| 2 | Standard Capacity | 40AH |
| 3 | Rated Voltage | 12.8V |
| 4 | Max Charge Voltage | 14.6V |
| 5 | Discharge Cut Off Voltage | 10V |
| 6 | Standard Charge Current | 20A |
| 7 | Max Continuous Discharge Current | 40A |
| 8 | Peak Instant Discharge Current | 80Ah with 5S |
| 9 | Dimension(ABS) | 197*165*170mm |
| 10 | Total weight(Approx.) | 6.5kg |
| 11 | Operate Temperature | -20°C~60°C |
| 12 | Built-in BMS | YES |
| 13 | Cycle Times | 2000 cycles |
Huaxing other 12V LiFePo4 battery
| 12.8V LiFePO4 Battery Pack |
| Battery Type | 12V12Ah | 12V20Ah | 12V50Ah | 12V75Ah | 12V100Ah | 12V200Ah | 12V300AH |
| Cell Type | 3.2V/6.0Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/6.0Ah |
| Nominal Voltage(V) | 12.8 |
| Nominal Capacity (Ah) | 12 | 20 | 50 | 80 | 100 | 200 | 300 |
| Charge Voltage (V) | 14.6 |
| Charge Current (A) | ≤10 | ≤20 | ≤50 | ≤75 | ≤100 | ≤150 | ≤150 |
| Discharge Current (A) | ≤10 | ≤20 | ≤50 | ≤75 | ≤100 | ≤150 | ≤150 |
| Weight(kg) | 1.5 | 3 | 7.5 | 11.5 | 14 | 29 | 40 |
| Dimensions(L*W*H)(mm) | 151*98*98 | 181*76*166 | 197*165*170 | 208*169*260 | 324*172*214 | 520*265*220 | 520*265*220 |
| Operation Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Housing Material | ABS |
| Protection Functions | short circuit, over charge, over discharge, over current, over
temperature |

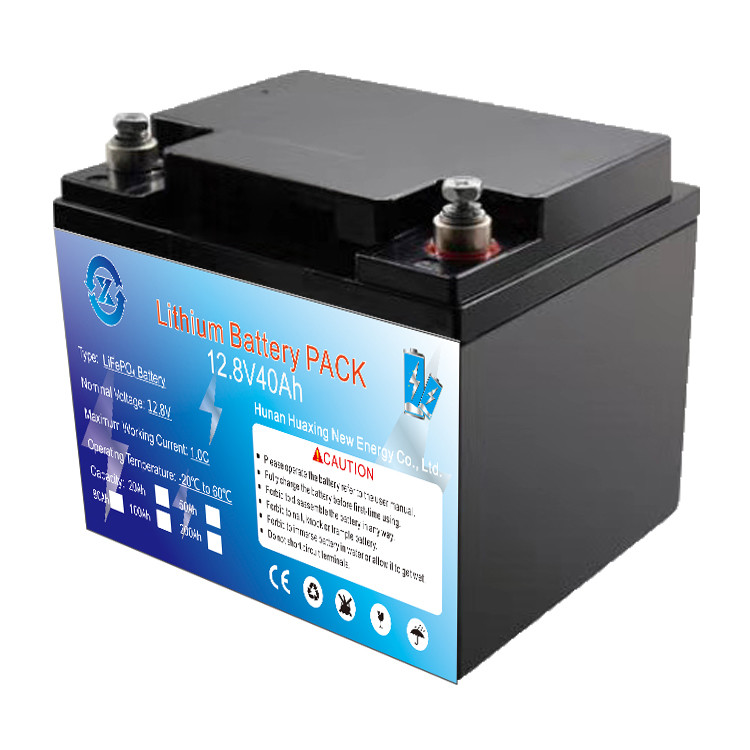

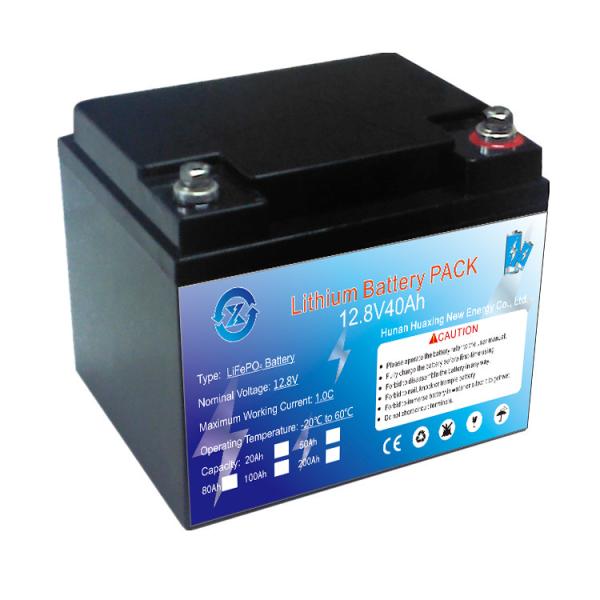

Product Picture
Package Information:
| DESCRIPTION | QUANTITY/CTN | PACKAGE | GROSS WEIGHT | NET WEIGHT | DIMS(m³) |
| (PCS) | CARTONS SIZE(MM) | (KG) | (KG) |
| 12V75AH LiFePo4 Battery | 1 | 460*250*220 | 11 | 10 | 0.03 |
Company Profile
Our company passed ISO9001:2015 and iSO14001:2015 and ISO45001:2018
Our 32700 LFP cell passed
UL1642/IEC62619/IEC61960/IEC62133/CE/PSE/BIS/Rohs/UN38.8 and MSDS.
Hunan Huaxing New Energy Technology Co.,Ltd is R&D production
and sales of 32700 LiFePo4 cells and battery pack.
We have over 50,000㎡ cell and pack workshop.With an annual
production of 3GWh cell equipment and at technical R&D team.
Our 32700 cylindrical cell certificate
