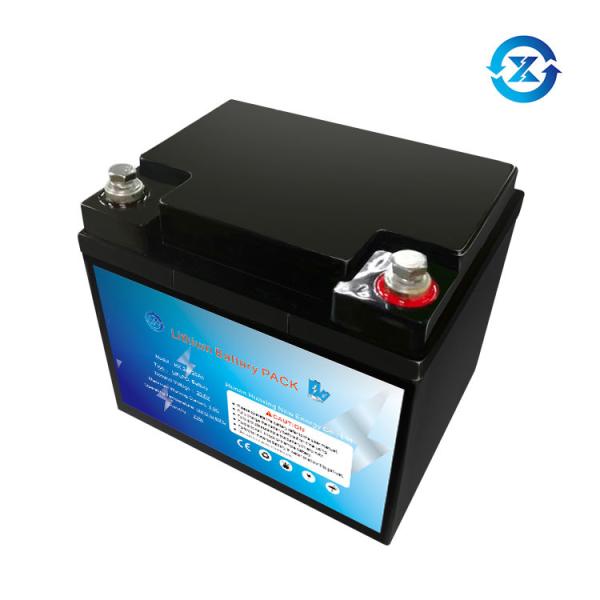

Name: Light Weight 7Kg Electric Wheelchair 24V LiFePO4 Batteries
Brand: Huaxing
Price: 120 USD

Add to Cart

Light Weight Electric Wheelchair 24V20ah LiFePo4 Batteries Lithium Ion Battery

Products Features

24V20AH LiFePo4 batteries specification

No.	Item	General Parameter
1	Model	HX2420
2	Standard Capacity	20AH
3	Rated Voltage	25.6V
4	Max Charge Voltage	29.2V
5	Discharge Cut Off Voltage	20V
6	Standard Charge Current	20A
7	Max Continuous Discharge Current	40A
8	Peak Instant Discharge Current	80A with 5S
9	Dimension(ABS)	197165170mm
10	Total weight(Approx.)	7kg
11	Operate Temperature	-20°C~60°C
12	Built-in BMS	YES
13	Cycle Times	2000 cycles

24V20AH LiFePo4 batteries BMS specification

Item	Content	Criterion
Charge and Discharge Port		Shared
Communication		None
Parallel Connection		None
Serial Connection		Max. 2pcs
Normal Current	Charge Current	≤20A
Normal Current	Discharge Current	≤20A
Over charge Protection	Over charge detection voltage	3.75±0.05V
	Over charge detection delay time	~1000mS
	Over charge release voltage	3.55±0.05V
	Over charge release condition	Cut off charger
	Maximum charge voltage	3.65±0.05V
Over discharge protection	Over discharge detection voltage	2.20V±0.10V
	Over discharge detection delay time	200ms
	Over discharge release voltage	2.4V±0.10V
Discharge over current protection	Discharge over current detection current	150±30A
	Discharge over current detection delay time	~100±50ms
	Discharge over current release condition	Cut load
Short circuit protection	YES

Main Applications:

RV ,Motorhome,Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, scooter, golf cart, forklift and so on.
Telecommunication, back-up power supply, UPS
Storage energy for solar system, solar street, home energy storage and so on

Light Weight 7Kg Electric Wheelchair 24V LiFePO4 Batteries

24V Stanadrd LiFePo4 battery to replace SLA battery

24V LiFePO4 Battery Pack
Battery Type	24V6Ah	24V10Ah	24V20Ah	24V30Ah	24V50Ah	24V100Ah	24V130AH
Cell Type	3.2V/6.0Ah	3.2V/5.5Ah	3.2V/5.5Ah	3.2V/5.5Ah	3.2V/5.5Ah	3.2V/5.5Ah	3.2V/6.0Ah
Nominal Voltage(V)	25.6V
Nominal Capacity (Ah)	6	10	20	30	50	100	130
Charge Voltage (V)	14.6
Charge Current (A)	≤6	≤10	≤20	≤30	≤50	≤100	≤100
Discharge Current (A)	≤6	≤10	≤20	≤30	≤50	≤100	≤100
Weight(kg)	1.5	3	7.5	11.5	14	29	40
Dimensions(LWH)(mm)	1519898	18176166	197165170	208169260	324172214	520265220	520265220
Operation Temperature	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃
Housing Material	ABS
Protection Functions	short circuit, over charge, over discharge, over current, over temperature

Package Information:

20ft container can load 1200 pks 24V20Ah lithium battery pack

40ft container can load 2400 pks 24V20Ah lithium battery pack

Light Weight 7Kg Electric Wheelchair 24V LiFePO4 Batteries
