BIS CE UN38.3 LiFePO4 Cylindrical Cells Deep Cycle 32650 32700 6000mah

Ask Lasest Price
Brand Name :	Huaxing
Model Number :	32700-3.2V-6.0Ah
Certification :	CE UL PSE BIS RoHS UN38.3 MSDS
Price :	2.3
Payment Terms :	L/C, D/P, T/T
Supply Ability :	100000 pcs per day
Delivery Time :	5-8 workdays

Add to Cart

Product Details
Company Profile

BIS CE UN38.3 LiFePO4 Cylindrical Cells Deep Cycle 32650 32700 6000mah

Product Description

Product Name : Shenzhen Huaxing Bis Ce Un38.3 Pin Screw Ul Deep Cycle 32650 32700 6000mah Lithium Battery Cells

Model: LiFePO4-32700- 6.0Ah

Deep Cycle Rechargeable Lithium Ion Ifr Battery 32700 3.2v 100ah Lifepo4 Battery Cell For Ev

Product Introduction:

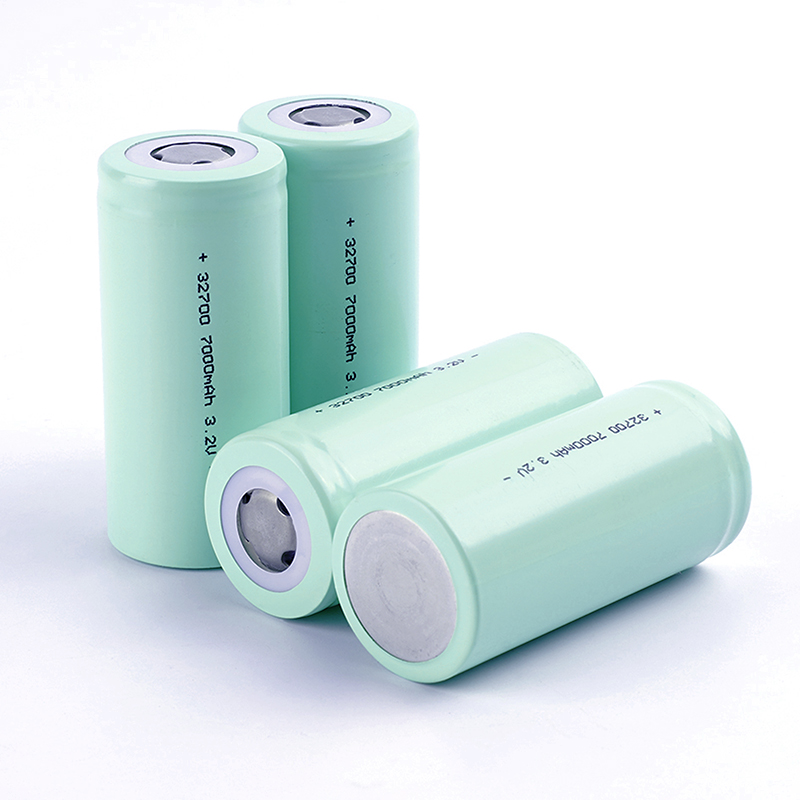

The IFR32700 type cylindrical LiFePO4 battery cell is featured on its small size, light weight, and
is environment friendly.
High safety, long life and other advantages.

Features:

Sturdy and pressure resistant steel envelope
High capacity
Excellent cycle life
Excellent high and low temperature performance
Steady output voltage
Low self-discharge
Double safety protection
With outstanding high level of vibrations and shocks

32700 lifepo4 battery.jpg

Lifepo4 Battery Cell.jpg

Applicaitons

-Best solution to replacement of lead acid battery 12V/48V
-Marine power energy storage, boat, yachts, sailing back-up power supply
-RV/camping energy storage for appliances, such lights, refrigerator, heating and so on.
-Light electric vehicle, like golf cart, scooter, E-rickshaw, two/three wheelers

32700 LifePO4 Cell.jpg

Lithium Iron Battery Cell.jpg

Product Datasheet

HUAXING 32700 LIFEPO4 BATTERY CELL SPECIFICATION:

Specification	Condition/Note	Content
Norminal Capacity	1C discharge capacity	6.0Ah
Minimum Capacity	1C discharge capacity	5.8Ah
AC Impedance	At AC 1000 Hz	≤8mΩ
Nominal Voltage		3.2V
Cell Size	Cell Diameter	32.2±0.3 mm x 70.5mm
Cell Weight	Bare cell	140±5 g
End-of-charge Voltage	CC Mode	3.65V
Max Charging Current		6A
End-of-charge Current	CV Mode	≤0.3A
Charging Method	Standard Charging	≤1 C at CC/CV
End-of-discharge Voltage	CC Mode	2.0V
Max continuous Discharging Current	3C Discharge	18A
Max Pulse Discharging Current		60A
Cycle Life	100 % DOD	≥2000 cycles
Operating Temperature Range	Charging Temperature	0~60 °C
Discharging Temperature		-20~ 60°C
Storage Temperature		-20~ 45°C
