Deep Cycle Rechargeable Lithium Ion 3.2v Ifr Battery 32700 Lifepo4
6ah 6000mah Battery Cells

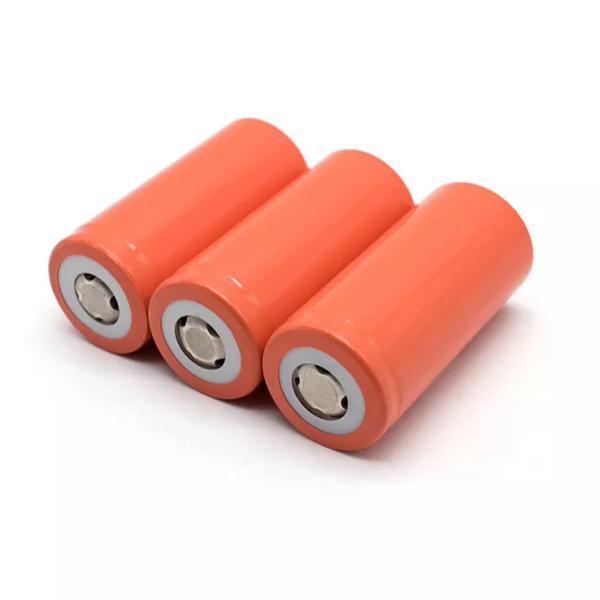

Product Name : Cylindrical Rechargeable Lithium-ion Cell
Product Model: LiFePO4-32700- 6.0Ah
Features:
- Sturdy and pressure resistant steel envelope
High capacity
Excellent cycle life
Excellent high and low temperature performance
Steady output voltage
Low self-discharge
Double safety protection
With outstanding high level of vibrations and shocks
Applications:
- -Best solution to replacement of lead acid battery 12V/48V
-Marine power energy storage, boat, yachts, sailing back-up power
supply
-RV/camping energy storage for appliances, such lights,
refrigerator, heating and so on.
-Light electric vehicle, like golf cart, scooter, E-rickshaw,
two/three wheelers
Product Introduction:
- The IFR32700 type cylindrical LiFeP04 single cell has the
advantages of small size, light weight, environmental protection,
- High safety, long life and other advantages.
- It is widely used in various battery combinations such as
automotive batteries, start-up power supplies, energy storage, etc.
Battery Structure:
![]()
Hunan Huaxing battery cell belongs to cylindrical lithium iron
phosphate battery. The single cell contains a built-in vent tube
and a safety valve to
enhance its safety protection function. The "dual protection"
effectively solves the lithium battery's high temperature caused by
extreme
conditions such as overcharge, short circuit and collision safe
question.
1.Using high safety positive and negative electrode materials.
2.Using flame retardant electrolyte
3.Using high temperature resistant diaphragm
HUAXING 32700 LIFEPO4 CELL SPECIFICATION:
| Item | Condition/Note | Specification |
| Norminal Capacity | 1C discharge capacity | 6.0Ah |
| Minimum Capacity | 1C discharge capacity | 5.8Ah |
| AC Impedance | At AC 1000 Hz | ≤8mΩ |
| Nominal Voltage | | 3.2V |
| Cell Size | Cell Diameter | 32.2±0.3 mm x 70.5mm |
| Cell Weight | Bare cell | 140±5 g |
| End-of-charge Voltage | CC Mode | 3.65V |
| Max Charging Current | | 6A |
| End-of-charge Current | CV Mode | ≤0.3A |
| Charging Method | Standard Charging | ≤1 C at CC/CV |
| End-of-discharge Voltage | CC Mode | 2.0V |
Max continuous Discharging Current | | 18A |
Max Pulse Discharging Current | | 60A |
| Cycle Life | 100 % DOD | ≥2000 cycles |
Operating Temperature Range | Charging Temperature | 0~60 °C |
| Discharging Temperature | -20~ 60°C |
| Storage Temperature | -20~ 45°C |
Srew and stud cells (See the picture):
Packaging and Shipping:
About Huaxing New Energy
Hunan Huaxing New Energy Technology Co., Ltd is a high quality
Lithium Ion
Battery company, integrating R&D, manufacturing and sales,
providing comprehensive solutions for any application.
-1000 Staff
-50,000 square meters of workshops
-3GWh annual production capacity
-300 million dollars annual turnover
Quality Management System: ISO 9001:2015, ISO 14001:2015, ISO
45001:2018
Product Safety and Performance Certificate: UL1642, IEC62619:2017,
IEC62133:2017,
IEC61960:2011, CE, BIS, PSE, ROHS, UN38.3, MSDS
Our production Lines:
HUAXING LIFEPO4 BATTERY PACK ROOMS:
