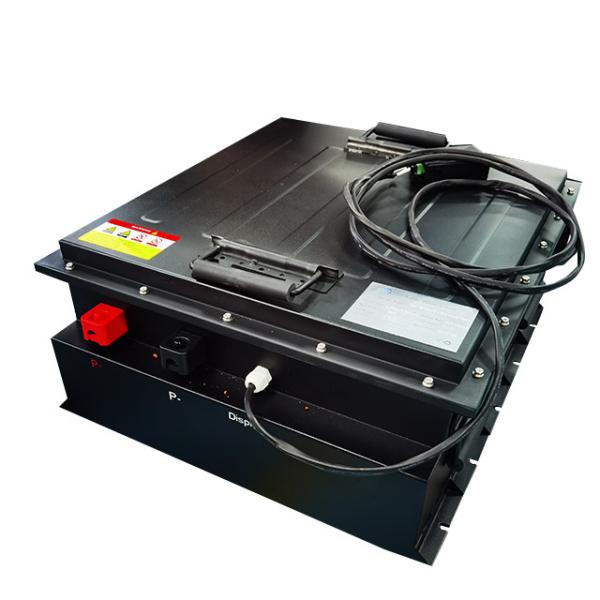

36V 100AH LiFePO4 Battery Pack For Golf Cart Marine Sightseeing Car
With Display
36V 100AH Lithium ion battery features
1.Long life cycles:Over 2000 cycles
2.High safety:No fire and explosion in overcharging and
overdischarge test
3.Fast charging
4.Environmental friendly
5.Light weight
6.Wide working temperature -20~60℃
36V 100AH Lithium ion battery specification
Rated voltage:38.4V
Rated capacity:100AH
Max charge voltage:43.8V
Discharge cut off voltage:30V
Standard charge current:50A
Max continuous discharge current:100A
Peak discharge current:200A with 5S
Dimension:630*320*280mm
Operate temperature:-20°C~60°C
Total weight:~49kg
Built-in BMS:YES
Cycle times: 2000 cycles
Display:SOC,temperature,voltage and current
36V 100AH Lithium ion battery BMS specification
| Item | Content | Criterion |
| Charge and Discharge Port | Shared |
| Communication | None |
| Parallel Connection | Max 2 pcs |
| Serial Connection | None |
| Normal Current | Charge Current | ≤100A |
| Discharge Current | ≤100A |
| Over charge Protection | Over charge detection voltage | 3.75±0.05V |
| Over charge detection delay time | ~1000mS |
| Over charge release voltage | 3.55±0.05V |
| Over charge release condition | Cut off charger |
| Maximum charge voltage | 3.65±0.05V |
| Over discharge protection | Over discharge detection voltage | 2.20V±0.10V |
| Over discharge detection delay time | 200ms |
| Over discharge release voltage | 2.4V±0.10V |
| Discharge over current protection | Discharge over current detection current | 330±30A |
| Discharge over current detection delay time | ~100±50ms |
| Discharge over current release condition | Cut load |
| Short circuit protection | YES |
Package Picture
| DESCRIPTION | QUANTITY/CTN | PACKAGE | GROSS WEIGHT | NET WEIGHT | DIMS(m³) |
| (PCS) | WOOD CASE SIZE(MM) | (KG) | (KG) |
| 36V100AH LiFePo4 Battery | 1 | 700*390*380 | 62 | 49 | 0.1 |
Accessories
Display:Show SOC,temperature,voltage and current
43.8V25A LiFePo4 charger
Company Profile
Our company passed ISO9001:2015 and iSO14001:2015 and ISO45001:2018
Our 32700 LFP cell passed
UL1642/IEC62619/IEC61960/IEC62133/CE/PSE/BIS/Rohs/UN38.8 and MSDS.
Hunan Huaxing New Energy Technology Co.,Ltd is R&D production
and sales of 32700 LiFePo4 cells and battery pack.
We have over 50,000㎡ cell and pack workshop.With an annual
production of 3GWh cell equipment and at technical R&D team.
Why Choose LiFePo4 Batteries Rather Than Lead Acid Batteries ?
1.Longer battery life – 5000times life cycle @60%DOD, 5 times more
than lead acid batteries
2.Low self-discharge <3.5% per months
3.Free of charge memory
4.Steady discharge and charge performance.
5.Outstanding thermal stability
6.Wide temperature performance
7.Short circuit protection
8.Over charge and over discharge protection
9.Over current protection
10.Easy carrying and installation - can be carried and installed in
any direction
11.Fast charging - about 4~6 hours to be fully charged
12.Lighter weight - 1/2~1/4 in weight compared to LA batteries
13.Require no change to a lead acid battery charging system
14.Better safety - mild warm, no explosion and firing, free of
leakage
15.Environmentally friendly - no poisonous lead, no acid, no
heavy/rare metals
16.No gasses during charge, free of leakage and pollution
