Light weight long life cycles 64V24AH LiFePo4 battery pack for two
three wheels vehicles
Huaxing 64V24AH LiFePo4 battery pack specification
Rated voltage:64V
Rated capacity:24AH
Max charge voltage:73V
Discharge cut off voltage:50V
Standard charge current:12A
Max continuous discharge current:24A
Peak discharge current:48A with 5S
Dimension:Customized(Steel case)
Total weight:~16kg
Operate temperature:-20°C~60°C
Built-in BMS:YES
Cycle times: 2000 cycles
Related lifepo4 battery

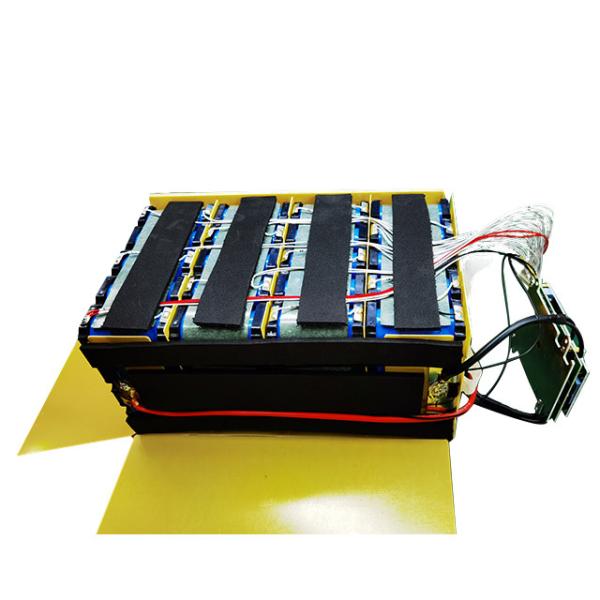

Inner Structrue
Huaxing New Energy
About us:
HUAXING NEW ENERGY is a group company.
The Headquarter is Shenzhen Huaxing New Energy Co., Ltd, its
subsidiary companies
including Hunan Huaxing New Energy Technology Co., Ltd which
produces 32700 lifepo4
cells and JuXing New Energy Co., Ltd which produces 32700 lifepo4
battery pack.
We has over 50,000 m2 CELL and PACK workshop. With an annual
productivity of 3GWh
cell equipment and a technical R&D team, its annual sales
volume can reach RMB two billion,
paying annual tax of RMB 100 million for the local area.
We are manufacturer with ISO9001:2015 and ISO14001:2015 and
ISO45001:2018.
Our 32700 lifepo4 cell passes:
UL1642/BIS/PSE/CE/Rohs/IEC62619/IEC61960/IEC62133/
and CB/UN38.3 and MSDS.
Strong R&D team, Strict Quality Control, Professional
customized serive, Competitive
price, and Great sales team.
ONLY IN 32700 LIFEPO4 BATTERY
FUCOUS MAKES US PROFESSIONAL!!!
Our Factory Environment: Welcome to visit us!
Huaxing Advantages.
Q1: Why should i choose Huaxing Energy
A1:Huaxing Energy is specialized in LiFePO4 battery industry for over 10 years. We support our customers with technical after-sales service, and
respond to customer's questions.And we are certified
ISO9001,ISO14001,ISO45001 and TS16949 certified lithium battery
pack factory.
Q2:Q: What's the battery warranty?
A2:We provide two-year warranty for all our batteries. And our
two-year battery warranty includes the following privileges when
used correctly in accordance with the manual instructions:
1. We'll assist to analyze customer's problem within 24 hours, and
help solve problem, restore battery usage, and introduce the
optimal use method.
2. If the problem can't be solved, we'll send new battery
replacement to the defective battery. And the defective battery
needs to be returned to our US warehouse, and will be checked and
tested by our technical team.
Q3: What charger do we recommend?
We recommend specialized LiFePo4 charger.its charging voltage
should be between 3.55-3.65V per series.For example 14.2V~14.6V for
12.8V battery pack, and standard charge rate is 0.2-0.5C.
Q4:If I connect 4*100Ah batteries for two in series and two in
parallel, what will be the maximum current draw?
A4:The system is 24V 200Ah that support max. 200A continuous
charge/discharge current, and max. 5120W load power.
