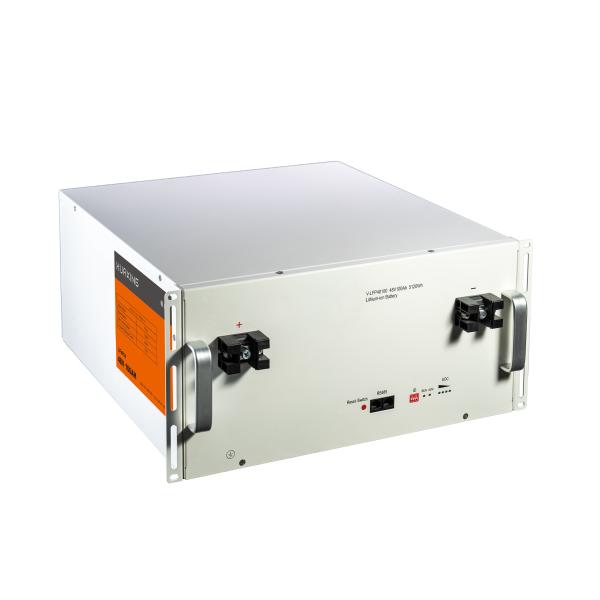

High quality lifepo4 battery 48v 100Ah for telecom
| Battery type | 51.2V 100Ah Lifepo4 battery | |
| 1 | Nominal Voltage(V): | 51.2V |
| 2 | Voltage Range(V): | 40~58.4 |
| 3 | Nominal Capacity(Ah): | 100 |
| 4 | Max. Charge Current(A): | 1C |
| 5 | Max. Continuous Discharge Current(A): | 1C |
| 6 | Peak Discharge Current(A): | 2C |
| 7 | Cycle Life(Times): | Over 2000times |
| 8 | Charge way: | CC/CV |
| 9 | Dimension(L*W*H): | 482.6*420.0*221.45mm |
| 10 | Working Temperature: | Charge: 0℃～45℃
Discharge: -20℃～60℃
Storage: -20℃～45℃ |
BMS Features:
Cell and battery pack voltage test.
Cell, environment and power temperature test
Battery charge and discharge current, capacity, life cycles test
Imported MOS tube, low internal resistance, high current and high
precision.
RS485,RS232 communication ways
Cell overvoltage and
undervoltage, battery
voltage undervoltage, charge
overcurrent, discharge
overcurrent, load short
circuit, reverse connection, cell
high and low temperature, Balance function.
10A limited current function.
More, see BMS specification.
Reference standards and test requirements
3.1 YD/T2344.1-2011 lithium iron phosphate battery pack for
communication
3.2 UN38.3 "Recommendation on the Transport of Dangerous Goods:
Manual of Tests and
Criteria" Part III, Section 38.3
3.3 GB4208-2008/IEC60529:2001 enclosure protection grade (IP code)
3.4 QZTT2235.1-2019 Lithium iron
phosphate battery pack
(integrated) technical
requirements and test specifications Part 1: Backup power
3.5 Standard test environment
Unless otherwise specified, all tests in
this specification are carried
out under the following
environmental conditions:
Temperature: (25±2)℃
Humidity: (65±20)%RH
Standard charging current: 0.2C
Standard discharge current: 0.2C
Dimension:
Support 15pcs in parallels.
Buildin BMS:
More details, pls kindly contact me.
Teresa
Our safety tests for our lifepo4 battery:
Our life cycle tests for our lifepo4 battery:
Related lifepo4 battery
More information about our common lifepo4 battery types or
customized types,
Pls free free to contact us directly.
Huaxing New Energy
About us:
HUAXING NEW ENERGY is a group company.
The Headquarter is Shenzhen Huaxing New Energy Co., Ltd, its
subsidiary companies
including Hunan Huaxing New Energy Technology Co., Ltd which
produces 32700 lifepo4
cells and JuXing New Energy Co., Ltd which produces 32700 lifepo4
battery pack.
We has over 50,000 m2 CELL and PACK workshop. With an annual
productivity of 3GWh
cell equipment and a technical R&D team, its annual sales
volume can reach RMB two billion,
paying annual tax of RMB 100 million for the local area.
We are manufacturer with ISO9001:2015 and ISO14001:2015 and
ISO45001:2018.
Our 32700 lifepo4 cell passes:
UL1642/BIS/PSE/CE/Rohs/IEC62619/IEC61960/IEC62133/
and CB/UN38.3 and MSDS.
Strong R&D team, Strict Quality Control, Professional
customized serive, Competitive
price, and Great sales team.
ONLY IN 32700 LIFEPO4 BATTERY
FUCOUS MAKES US PROFESSIONAL!!!

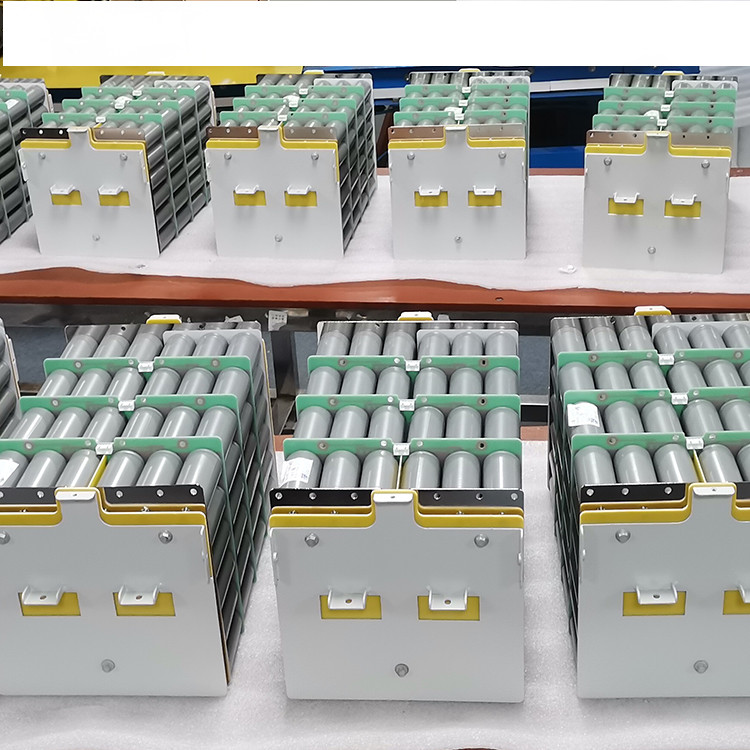

Our Factory Environment: Welcome to visit us!
