500KWh 1MWh off grid ess LiFePO4 Commercial Solar Lithium battery
energy storage system container
Product Description
215Kwh Lithium Iron Phosphate LiFePO4 Commercial ESS Cabinet Energy
Storage Systems
High Capacity Flame Retardant Electrolyte 6mwh Battery Storage
Container For Ev Battery Pack
BESS 215KWh Energy Storage System
The BESS 215KWh Energy Storage System is a cutting-edge Energy
Storage System (ESS) designed to provide efficient and
uninterrupted power supply. With its advanced features and
capabilities, it offers a reliable solution for various
applications.
Features:
0.02s On-grid-to-off-grid switching time to ensure uninterrupted power
supply.
5-in-1 Fire detection system for comprehensive monitoring.
24 Maximum parallel connections support.
93% Maximum cycle efficiency.
160A Maximum discharge current.
System Parameter:
| Model:215KWh | Specification |
|---|
| Rated Energy (kWh) | 215 |
| Rated Voltage (V) | 768 |
| Voltage Range (Vdc) | 725-840 |
| Charge/Discharge C-rate (P) | ≤0.5 |
| Maximum Cycle Efficiency | 93% |
| Depth of Discharge | 95% |
| Cycle Life | ≥8000 |
| Cooling Method | Industrial-grade temperature-controlled air conditioning |
| Fire Protection System | Perfluorohexane |
| Rated Power (kW) | 100 |
| AC Current Harmonics | ≤3% (at rated power) |
| DC Component | ≤1% (at rated power) |
| Rated AC Voltage (Vac) | 380/400 |
| AC Voltage Range | -15% to +10% |
| Rated Grid Frequency (Hz) | 50/60 |
| Dimensions (W x D x H, mm) | 1520 x 1270 x 2117 |
| Weight (T) | 2.6 |
| Protection Level | IP55 |
| Operating Temperature Range (℃) | -20 to +55 (Derating when reaching 45℃) |
| Operating Humidity Range | 0-95% (Non-condensing) |
| Operating Altitude (m) | ≤4000 (Derating when reaching 2000m) |
| System Communication Interface | RS485, Ethernet |
| System Communication Protocol | Modbus RTU, Modbus TCP, IEC104 |
Battery Parameters:
| Parameter | Value |
|---|
| Battery Type | LFP, 3.2V 280Ah |
| Battery Module | 64V280Ah,17.92kWh,140.5kg |
| Battery Cluster Configuration | 240S1P |
| Battery Cluster Rated Energy (kWh) | 215.04 |
| Standards | GB/T34120, VDE4105, G99, IEC50549, IEC62477, IEC61000, IEC62116,
IEC62619, IEC62109 |

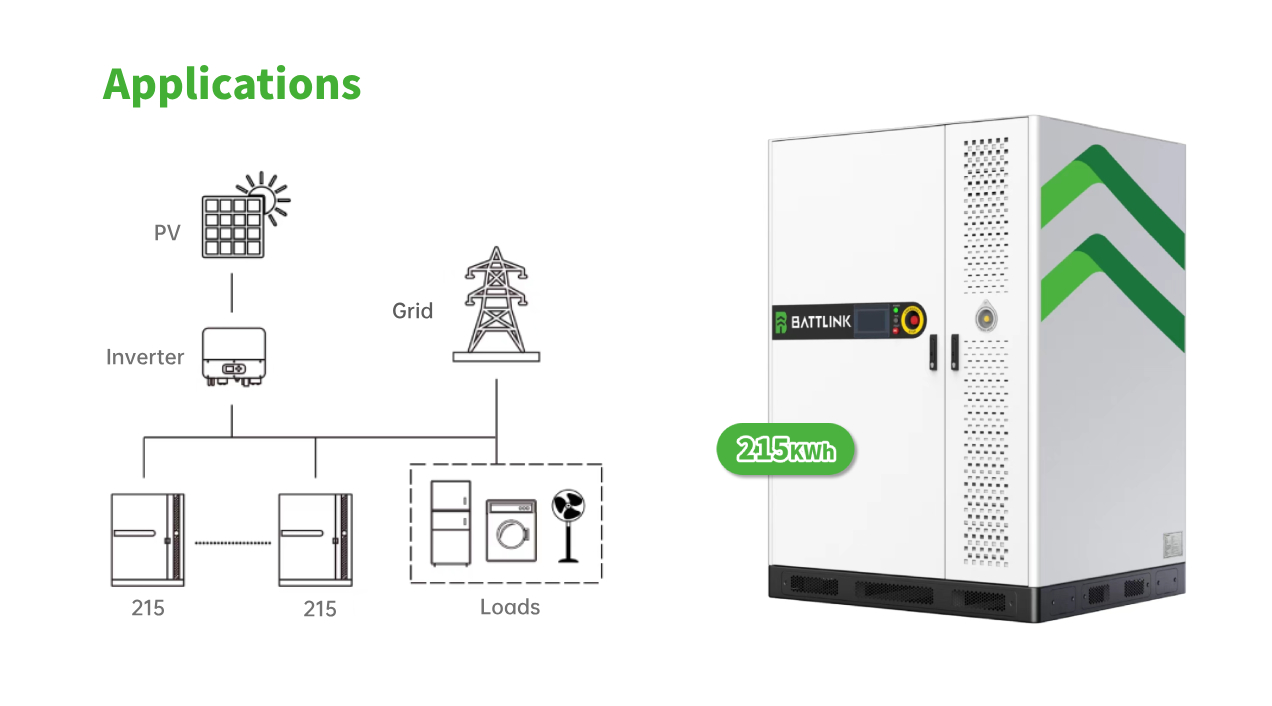

Applicaitons
About Huaxing New Energy
Hunan Huaxing New Energy Technology Co., Ltd is a high quality
Lithium Ion
Battery company, integrating R&D, manufacturing and sales,
providing comprehensive solutions for any application.
-1000 Staff
-50,000 square meters of workshops
-3GWh annual production capacity
-300 million dollars annual turnover
Quality Management System: ISO 9001:2015, ISO 14001:2015, ISO
45001:2018
Product Safety and Performance Certificate: UL1642, IEC62619:2017,
IEC62133:2017,
IEC61960:2011, CE, BIS, PSE, ROHS, UN38.3, MSDS
