Phosphate 1560Wh 12V LiFePO4 Batteries For RV Motorhome Replacement
A Perfect AGM Replacement Lithium Ion Phosphate 12.8V 120Ah Lifepo4
Battery For RV Motorhome
Description and Model
• Battery Classification: 32700-LiFePO4-12V
• Battery Model: 12V120Ah
Dimensions(L*W*H): 328±1*171±1*215±1mm
Application
- Auto control system &ATM machine
- Railway system & Aircraft signal
- Electronic apparatus and equipmen
- Emergency light & Emergency backup power supply
- Alarm/Security system
- Power generation system (Solar and Wind power system,etc.)
- Communication power & DC power
- Electric Power System(EPS)
- Uninterruptable Power System (UPS)
Product Datasheet
| Cell Parameter |
| Sr. NO. | Item | Data Details |
| 1 | Battery Type | 12v LiFePO4 Battery |
| 2 | Rated Voltage/Capacity | 3.20V/6.0Ah |
| 3 | Voltage Range | 2.00V-3.65V |
| 4 | Weight | 0.143kg |
| 5 | Size | (32x70mm) |
| 6 | Cathode Material | LiFePO4 |
| 7 | Anode Material | Graphite |
| 8 | Electrolyte Material | LiPF6 |
| 9 | Working Temperature | Charge: 0℃-45℃, Discharge: -20℃-60℃ |
| 10 | Charge Retention | 95% (25℃, 28 days) |
| 11 | Cycle Times | over 2000 cycles(0.2C cycle, 25℃,capacity retention 80%) |
| 12 |
Cell Discharge Curve | |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Battery Pack Parameter |
| 1 | Nominal Voltage | 12.8V | |
| 2 | Voltage Range | 10-14.6V | Cells voltage range: 2.5-3.65V |
| 3 | Nominal Capacity | 100Ah | |
| 4 | Nominal Energy Capacity | 1280Wh | |
| 5 | Max. Charge Current | 100A | 1C |
| 6 | Max. Continuous Discharge Current | 100A | 1C |
| 7 | Peak Discharge Current | 200A | Duration time: 10S |
| 8 | Cycle Life of Battery Pack | Over 2000 | at 80 % DoD, 25℃ |
| 9 | Total Weight | 13.0kg | |
| 10 | Humidity | 10%-90% | |
| 11 | Cooling Method | Natural Cooling | |
| 12 | Working Temperature | | Discharge: -20℃-60℃
Charge: 0℃-45℃ |
BMS Specification
It is also supported by an integrated BMS that protects against
overcharge/discharge, temperature and short circuit events for
complete confidence when in operation.
| Item | Content | Criterion |
| Charge and Discharge Port | Shared |
| Communication | None |
| Parallel Connection | None |
| Serial Connection | Max. 4pcs |
| Charge Current | ≤100A |
|
| Normal Current |
| Discharge Current | ≤100A |
| Over charge Protection | Over charge detection voltage | 3.90±0.025V |
| Over charge detection delay time | 0.96-1.4s |
| Over charge release voltage | 3.80±0.05V |
| Over charge release condition | Cut off charger |
| Maximum charge voltage | 3.65±0.05V |
| Over discharge detection voltage | 2.0V±0.050V |
| Over discharge protection | Over discharge detection delay time | 115-173ms |
| Over discharge release voltage | 2.3V±0.10V |
| Over current detection current | 240±10A |
| Over current protection | Over current detection current | 240±10A |
| Over current detection delay time | 9±2ms |
| Over current release condition | Cut load |
| Short circuit protection | YES |

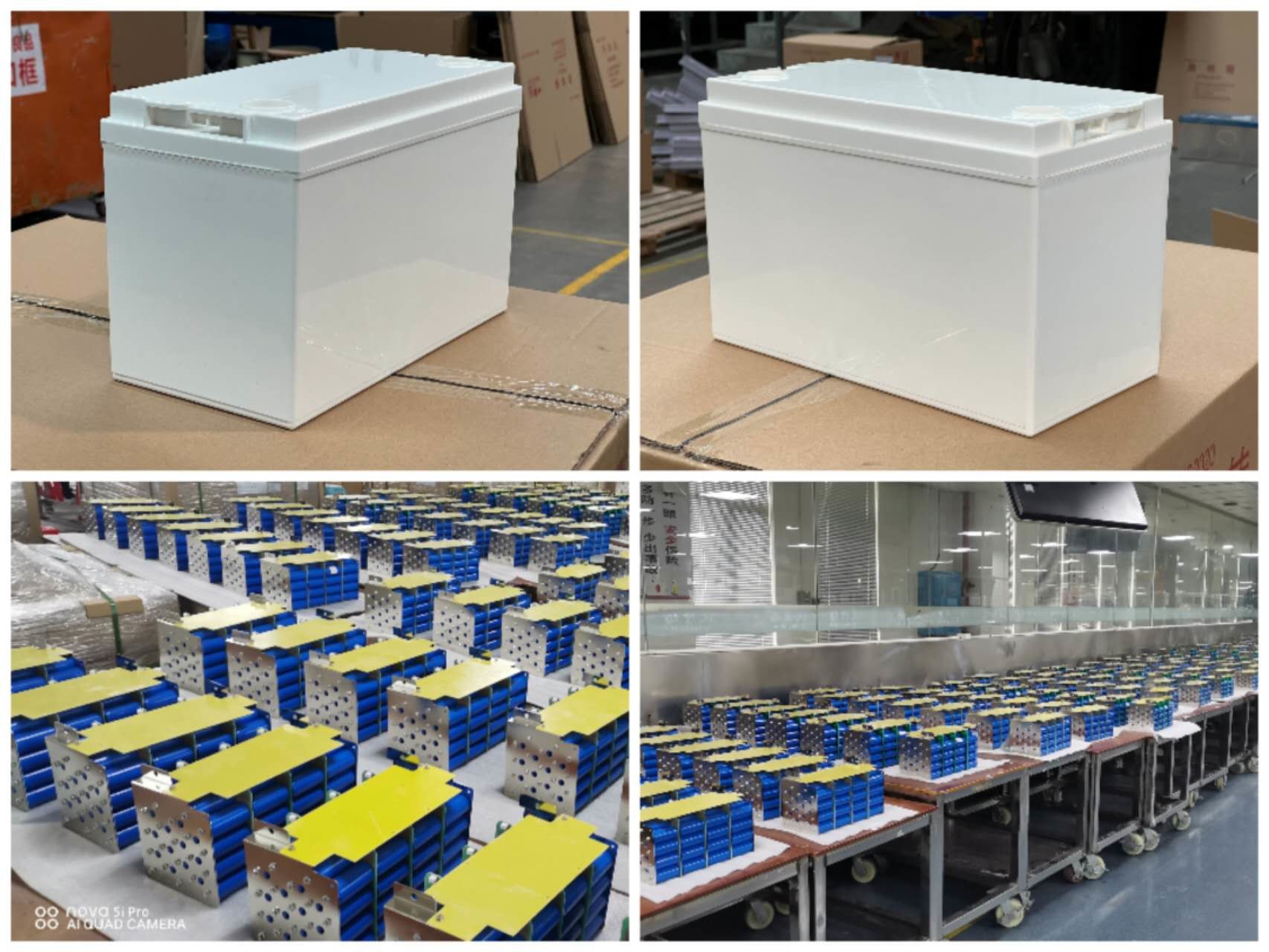

12V120Ah lithium ion phosphate battery production line

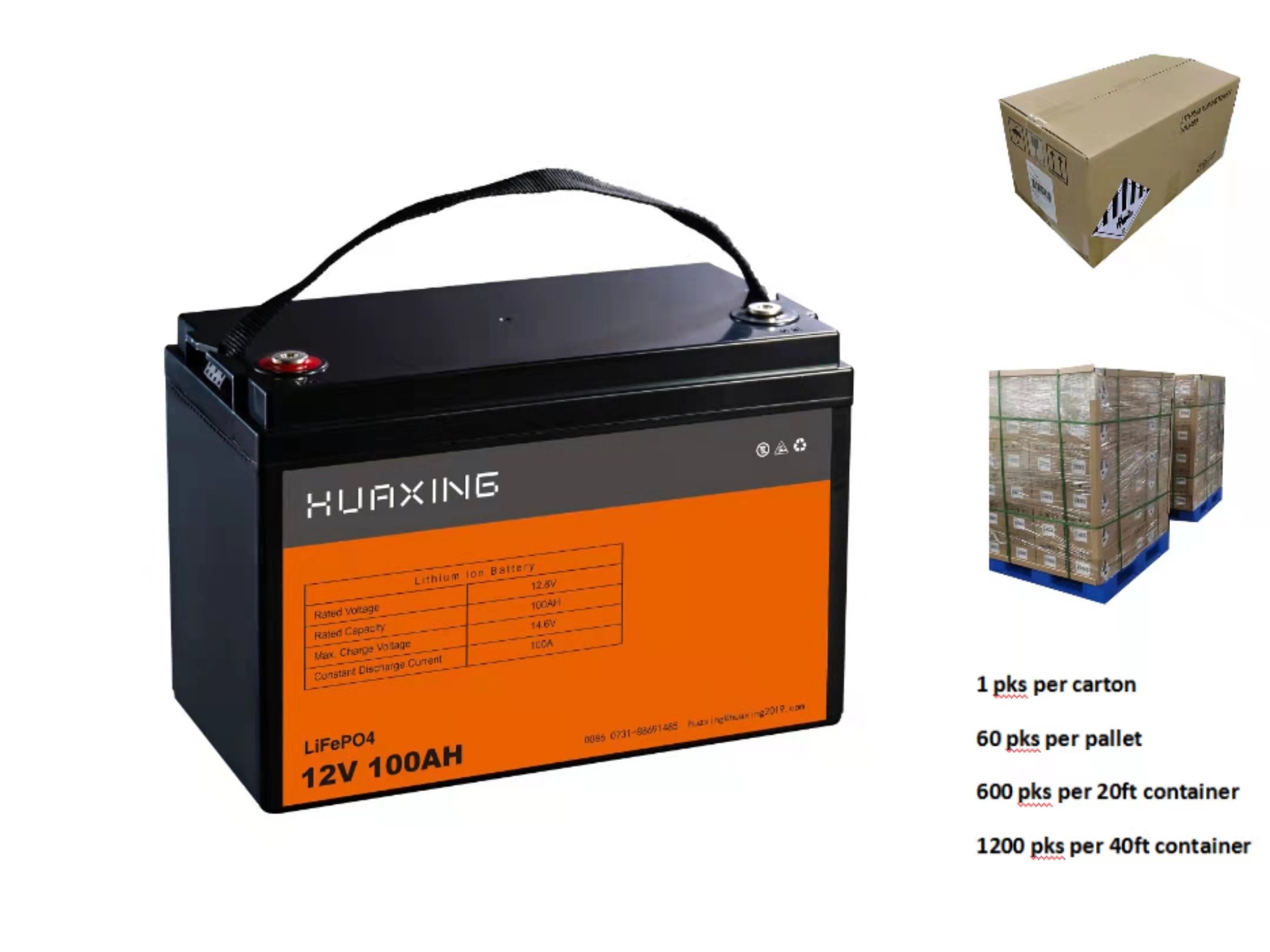

Packaging & Shipping
Packaging Method: carton, 1pcs/CTNS, 60pcs/PLTS, 600pcs per 20ft
container
1.The battery should be checked for the voltage, resistance and the
function of protective circuit before shipment.
2.The battery should be transported to the factory assembly, pay
special attention to the packing, in order to avoid transport
damage.
3.We suggest using the same packaging when the battery is
transported. Even the package is opened, please
pack with the components and materials as same as the original
packing.
Guarantee Period of Quality:
1.We assume no responsibility for the accident of not operating in
accordance with the specification.
2.The guarantee period of quality is 2 years based on delivery
date. Our company would replace battery which due to
the manufacturing problems when not in abnormal use.
About Huaxing New Energy
Shenzhen Huaxing New Energy Technology Co., Ltd is a high quality
Lithium Ion
Battery company, integrating R&D, manufacturing and sales,
providing comprehensive solutions for any application.
-200 Staff
-50,000 square meters of workshops
-3GWh annual production capacity
-300 million dollars annual turnover
Quality Management System: ISO 9001:2015, ISO 14001:2015, ISO
45001:2018
Product Safety and Performance Certificate: UL1642, IEC62619:2017,
IEC62133:2017,
IEC61960:2011, CE, BIS, PSE, ROHS, UN38.3, MSDS
