48V 42AH Lithium Ion Battery Pack For Logistics Equipment Fork Lift
51.2V42AH Lithium Ion Battery Pack For Logistics Equipment Fork
Lift
Products Features
Reliable,power lithium batteries
Wide applications:Military back up/RV/Motorhome,Golf
cart,Marine,Solar system
Light weight
Environmental friendly
51.2V42AH Lithium Batteries specification
No. | Item | General Parameter |
1 | Model | HX4842 |
2 | Standard Capacity | 42AH |
3 | Rated Voltage | 51.2V |
4 | Max Charge Voltage | 58.4V |
5 | Discharge Cut Off Voltage | 40V |
6 | Standard Charge Current | 25A |
7 | Max Continuous Discharge Current | 50A |
8 | Peak Instant Discharge Current | 100A with 5S |
9 | Dimension(Steel case) | Customized |
10 | Total weight(Approx.) | 22kg |
11 | Operate Temperature | -20°C~60°C |
12 | Built-in BMS | YES |
13 | Cycle Times | 2000 cycles |

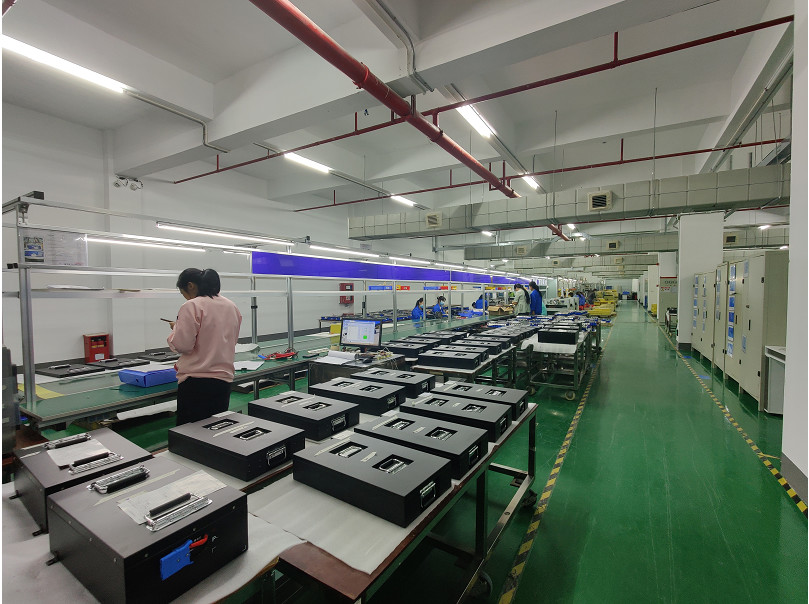

51.2V 42AH Lithium ion phosphate battery Production line
Main Applications:
- Military back up,RV ,Motorhome,Electric two-wheeled vehicle,
three-wheeled vehicle, four-wheeled low-speed vehicle, scooter,
golf cart, forklift , Autonomous Case-handling Robots (ACR) so on.
- Telecommunication, back-up power supply, UPS
- Storage energy for solar system, solar street, home energy storage
and so on
51.2V42AH Package picture
Package Information:
DESCRIPTION | QUANTITY/CTN | PACKAGE | GROSS WEIGHT | NET WEIGHT | DIMS(m³) |
(PCS) | CARTONS SIZE(MM) | (KG) | (KG) |
51.2V42AH LiFePo4 Battery | 1 | 579*344*145 | 23.5 | 22.5 | |
Company Profile
Our company passed ISO9001:2015 and iSO14001:2015 and ISO45001:2018
Our 32700 LFP cell passed
UL1642/IEC62619/IEC61960/IEC62133/CE/PSE/BIS/Rohs/UN38.8 and MSDS.
Hunan Huaxing New Energy Technology Co.,Ltd is R&D production
and sales of 32700 LiFePo4 cells and battery pack.
We have over 50,000㎡ cell and pack workshop.With an annual
production of 3GWh cell equipment and at technical R&D team.
The comparison between SLA and LFP
| LFP battery | SLA battery | Remarks |
| Weight | high energy density: 110-120Wh/kg, leads to a smaller size and
lighter weight | low energy density: 32-37Wh/kg | LFP battery is about 70% size and weight of SLA battery, lower the
total weight of application |
| Cycle life | 4000 cycles and more | 400-500 cycles | LFP can be used for almost 10 years; SLA can only last for max. 2
years |
| Capacity Utilisation | 80 to 100% | 50 to 60% | Most lead acid batteries do not recommend more than 50% depth of
discharge |
| Efficiency | allows for the same amp hours both in and out | voltage drops quickly and reduces the batteries' capacity while
charging and rapid discharging | LFP battery has almost 100% efficiency while SLA battery has only
maximum 75% efficiency |
| Voltage | maintain voltage throughout the entire discharge cycle | drops consistently throughout the discharge cycle. | A stable droping voltage allows for greater and longer-lasting
efficiency of electrical components |
| Cost | Up to 8 times the cycle life compared to equivalent SLA | A low upfront cost, but a high cost of ownership in long run | Lower total cost of ownership |
| Environmental effect | clean technology, safer and more environment friendly | contains the heavy metal - lead | |
