IP65 48V LiFePO4 Battery For Golf Cart Marine Boat With CAN RS485
Lithium Ion Battery 51.2V 100AH For Golf Cart Marine Boat With CAN
/ RS485 IP65
48V 100AH LiFePo4 battery features
● More than 10 years of life cycles.
● Light-weight: Lightweight design, packed with aluminum plate and
plastic components.
● They are designed to replace the lead-acid battery, which are
available for drop-in replacement
● Insulation: Perfect electrical insulation, both inside and
outside.
● Performance: Good heat conductivity, safety performance.
● No more maintenance.
● IP65
48V 100AH Deep cycle Lithium ion battery specification
| No. | Item | General Parameter |
| 1 | Model | HX48100 |
| 2 | Standard Capacity | 100AH |
| 3 | Rated Voltage | 51.2V |
| 4 | Max Charge Voltage | 58.4V |
| 5 | Discharge Cut Off Voltage | 40V |
| 6 | Standard Charge Current | 50A |
| 7 | Max Continuous Discharge Current | 100A |
| 8 | Peak Instant Discharge Current | 200Ah with 5S |
| 9 | Dimension(Steel Case) | 500*343*256.5 |
| 10 | Total weight(Approx.) | 60kg |
| 11 | Operate Temperature | -20°C~60°C |
| 12 | Built-in BMS | YES |
| 13 | Cycle Times | 2000 cycles |
| 14 | IP Grade | IP65 |
48V 100AH Lithium ion battery software BMS specification
| Item | Content | Criterion |
| Charge and Discharge Port | Shared |
| Communication | None |
| Parallel Connection | Max 2 pcs |
| Serial Connection | None |
| Normal Current | Charge Current | ≤100A |
| Discharge Current | ≤100A |
| Over charge Protection | Over charge detection voltage | 3.75±0.05V |
| Over charge detection delay time | ~1000mS |
| Over charge release voltage | 3.55±0.05V |
| Over charge release condition | Cut off charger |
| Maximum charge voltage | 3.65±0.05V |
| Over discharge protection | Over discharge detection voltage | 2.20V±0.10V |
| Over discharge detection delay time | 200ms |
| Over discharge release voltage | 2.4V±0.10V |
| Discharge over current protection | Discharge over current detection current | 330±30A |
| Discharge over current detection delay time | ~100±50ms |
| Discharge over current release condition | Cut load |
| Short circuit protection | YES |
Main Applications:
Our LiFePO4 battery pack for golf carts outlasts the competition in
performance and precision. These 36V, 48 V and 72V lithium
batteries are suitable for today’s golf cart market. They offer
exceptional speed, acceleration, and value for your golf cart,
utility vehicle, AGV, and more.

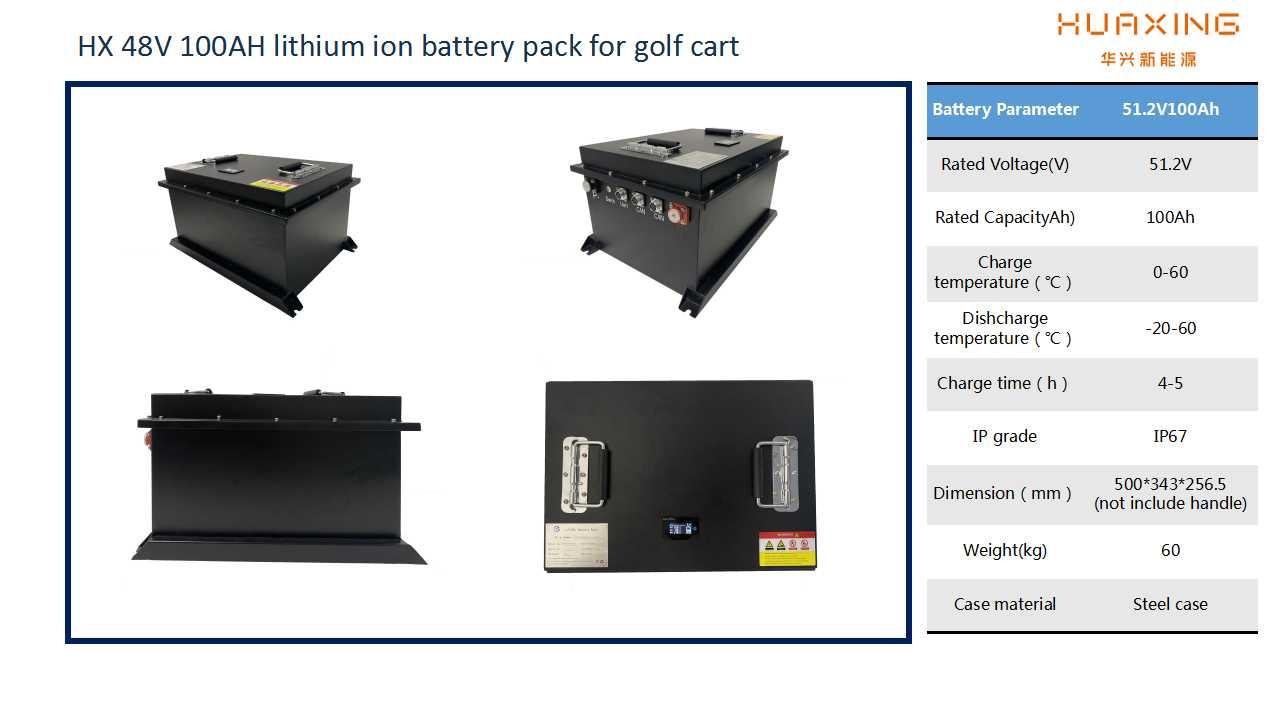

Products Picture:
Company Profile
Shenzhen Huaxing New Energy Technology Co.,Ltd is R&D
production and sales of 32700 LiFePo4 cells and battery pack.
Our company passed ISO9001:2015 and iSO14001:2015 and ISO45001:2018
Our 32700 LFP cell passed
UL1642/IEC62619/IEC61960/IEC62133/CE/PSE/BIS/Rohs/UN38.8 and MSDS.
Customized as per customer requirement
1. The battery pack can be applied for electric vehicle factory new
project, also suitable for replacing lead-acid battery project .
Dimension and interface, battery cell material can be customized
for EV factory customers.
2. Professional battery design. Our engineer’s team can customize
the best solution considering mechanical & electrical concepts.
3. Sample order available. Factories or wholesalers can place
sample orders to test our battery performance on the electric
vehicle first and then place the batch mass production order.
