ESS Battery Solar Power System Battery 50ah 100ah 200ah 48V 5kw 10kw Lithium Ion Battery

Ask Lasest Price
Brand Name :	HX
Certification :	SGS/CE/Rosh
Price :	750
Payment Terms :	Western Union, T/T, MoneyGram
Supply Ability :	5000

Add to Cart

Product Details
Company Profile

ESS Battery Solar Power System Battery 50ah 100ah 200ah 48V 5kw 10kw Lithium Ion Battery

Ess Battery Solar Power System Battery 50ah 100ah 200ah 48V 5kw 10kw Lithium Ion Battery

Basic Info.

Model NO.

SPW5KWH-10KWH

Cell Model

3.2V 100ah

Scalability

up to 10 Parallel

IP Grade

IP21

Specification

680*485*180(220mm)

Origin

China

HS Code

8507600090

Production Capacity

500PCS/Day

Product Description

Ess Battery Solar Power System Battery 50ah 100ah 200ah 48V 5kw 10kw Lithium Ion Battery

Model	5000W	7000W	10000W
Nominal Voltage	51.2V(16series)
Capacity	100Ah	150Ah	200Ah
Battery Energy	5120Wh	7680Wh	10240Wh
Internal Resistance	≤30mΩ
Cycle Life	≥6000 cycles @80% DOD, 25ºC, 0.5C
Design Life	≥10 years
Charge Cut-off Voltage	56.0V ±0.5V
Max. Continuous Work Current	100A/150A(Can Choose)
Discharge Cut-off Voltage	45V ±0.2V
Charge Temperature	0ºC~60ºC(Under 0ºC extra heating mechanism)
Discharge Temperature	-20ºC~60ºC(Under 0ºC work with reduced capacity)
Storage Temperature	-40ºC~55ºC @ 60% ± 25% relative humidity)
Dimensions	680 x 485x 180(220mm)
Weight	Approx : 65kg	Approx : 85kg	Approx : 98kg
Protocol (optional)	RS232-PC, RS485(B)-PC RS485(A)- Inverter, Canbus-Inverter

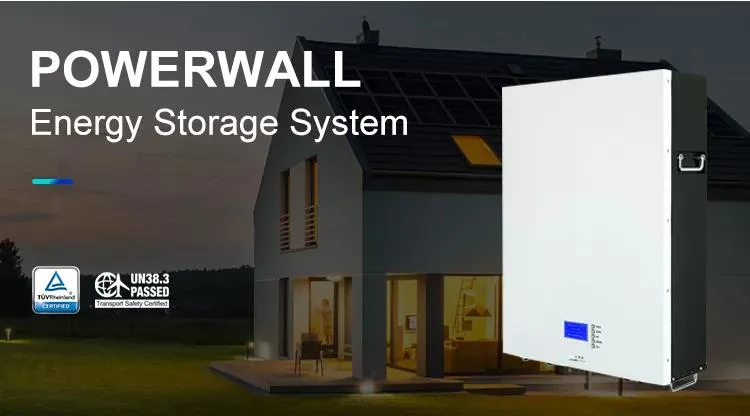

LFP-Powerwall box

*Low-voltage lithium battery. With a scalable modular design, the capacity range can be expanded from 10.24kWh to 102.4kWh.

*The modules are connected by cables to support high-power work and are easy to install and maintain. Long life technology ensures more than 6000 cycles with 90% DOD.

Performance

*High security technology ensures stable and excellent perfor-mance.

*Compatible with multiple inverters including KSTAR DEYE GOODWE Solis Growatt Voltronic....

*It provides highly effcient energy solutions for household scenarios and small commercial scenarios.

Smart&Modular Design

Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Unlike gasoline generators, Power storage wall keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days
